Floway®

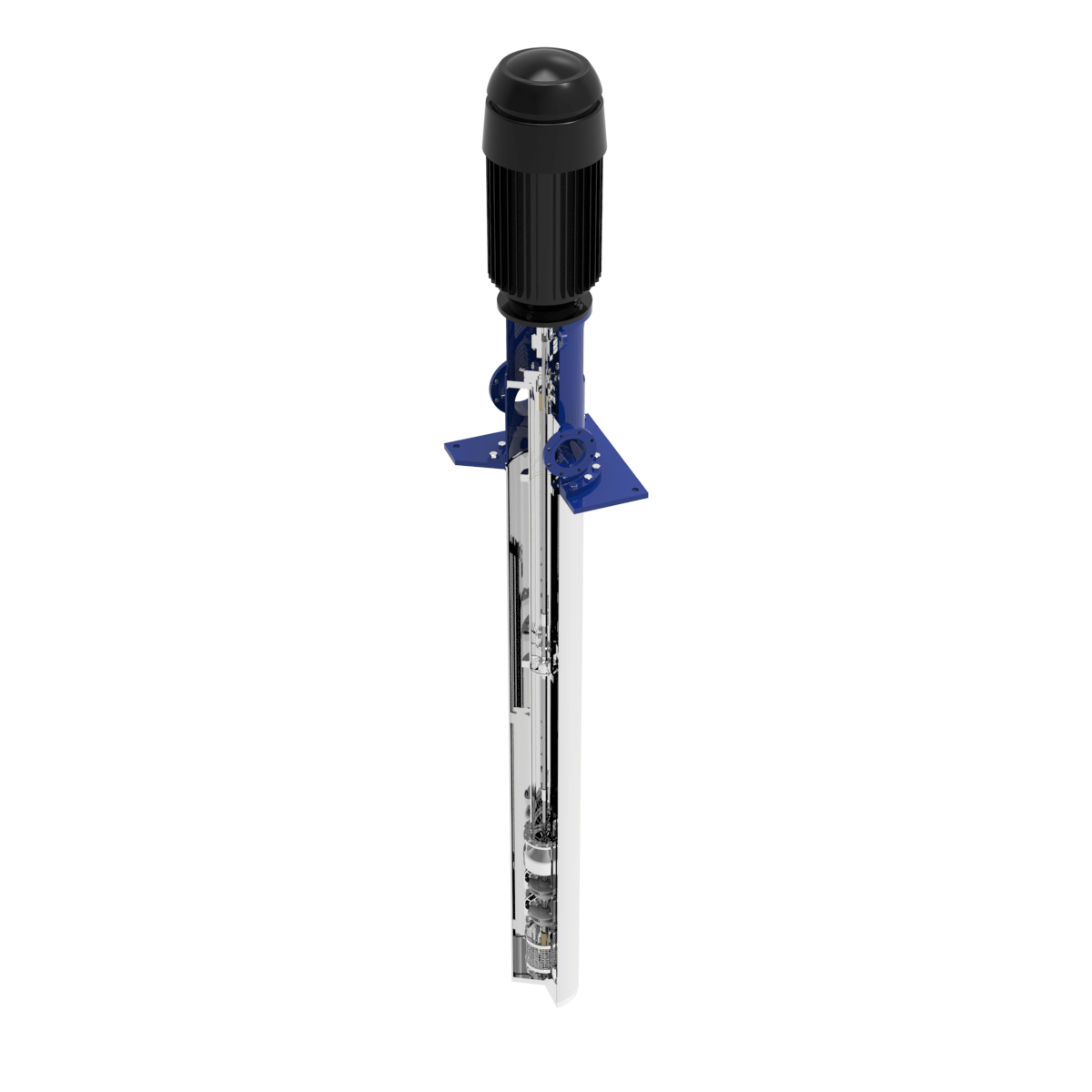

VHP API 610 Vertical Turbine Pump
The Floway® VHP pump is API 610 current edition compliant, vertical close coupled, single or multistage turbine pump, with a fabricated discharge head, top mounted motor, and wet pit (VS1) or closed suction (VS6).
The Floway® VHP can withstand higher pressures with premium efficiencies and low operating costs. The available low-NPSH impeller allows for a reduced barrel length. The pump bowl assembly is characterized as low energy per stage resulting in a broad flow range with excellent hydraulic stability.
The “O” ring joints throughout pump eliminates leaking for higher pressure applications. A throttle bearing provides shaft support and allows for higher operating pressures.
Key Features & Benefits
- API 610 current edition compliant
- API 610 material combinations
- Thrust bearing assembly available
- Fabricated discharge head
- Above & below ground suction
- Flanged column
- Enclosed & open impellers
- Multiple coating options
- Multiple NDE testing options
- Bowl & impeller wear rings
- Thrust balanced impeller
- Hard chrome bearing journals
- Product lube & oil lube shafting
- Mechanical shaft sealing
- VSS & VHS motor shafting
- Keyed impeller mounting
Design Standard
- API 610 11th edition
Pressure Class & Power
- Pressures up to 3,000 psi (200 bar)
Capacity
- 35,000 gpm (8,000 m3/h)
Applications
- Vertical process
- Light hydrocarbon
- High vapor pressure (low NPSHA)
- Pipeline
- Pipeline booster
- Offshore platform & seawater lift (crude oil transfer)
- Refinery service
- LPG transfer
- Secondary recovery
- Cryogenic liquid
- Cooling water
- Aircraft fueling
- Terminal & transfer
- Fire pumps
Size Range & Dimensions
- 4 – 37 inches
Temperature Range
- -130ºF (-90ºC) to 450ºF (220ºC)
Materials
- S4, S5, S6 A8, D1, D2
