WEMCO®
Torque-Flow®

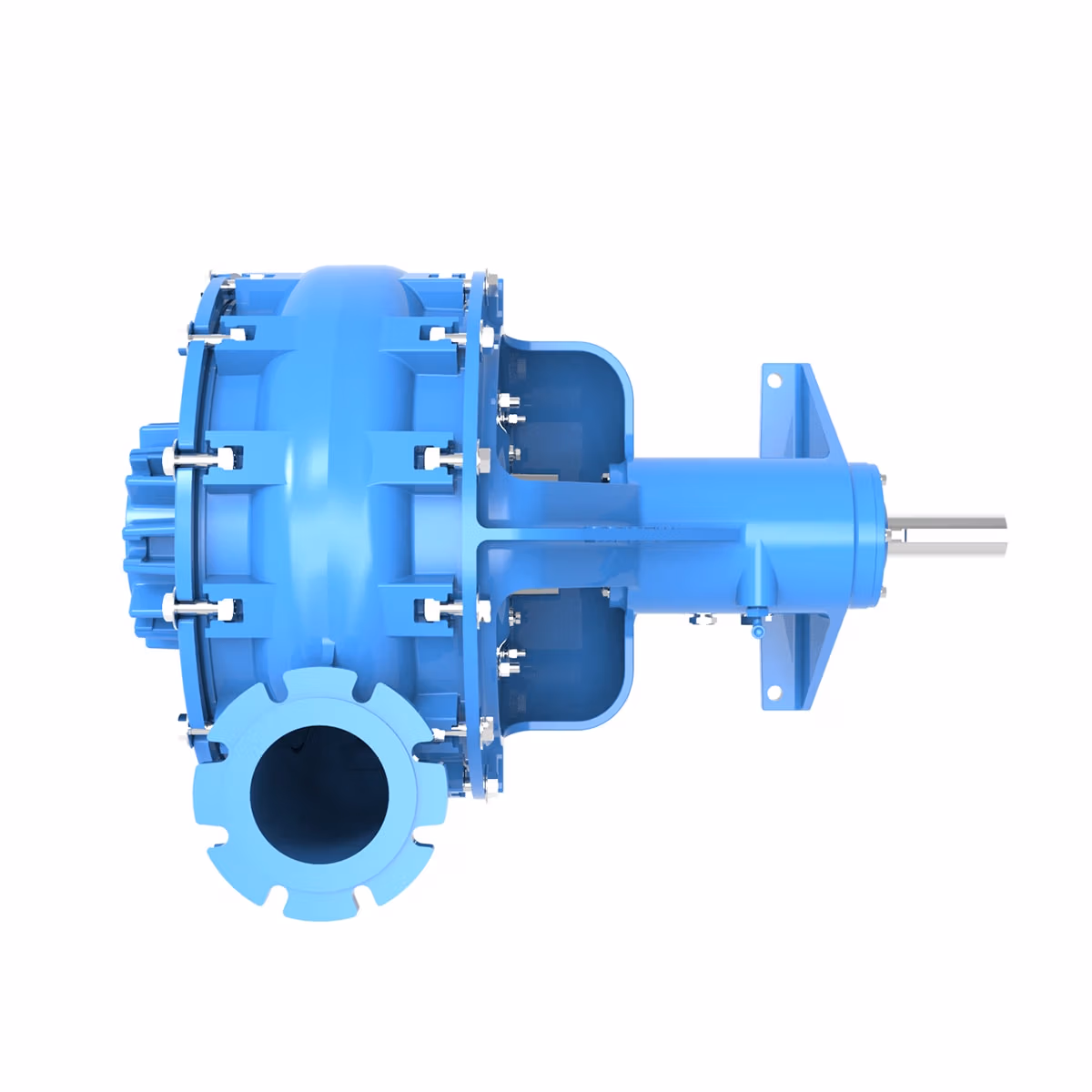

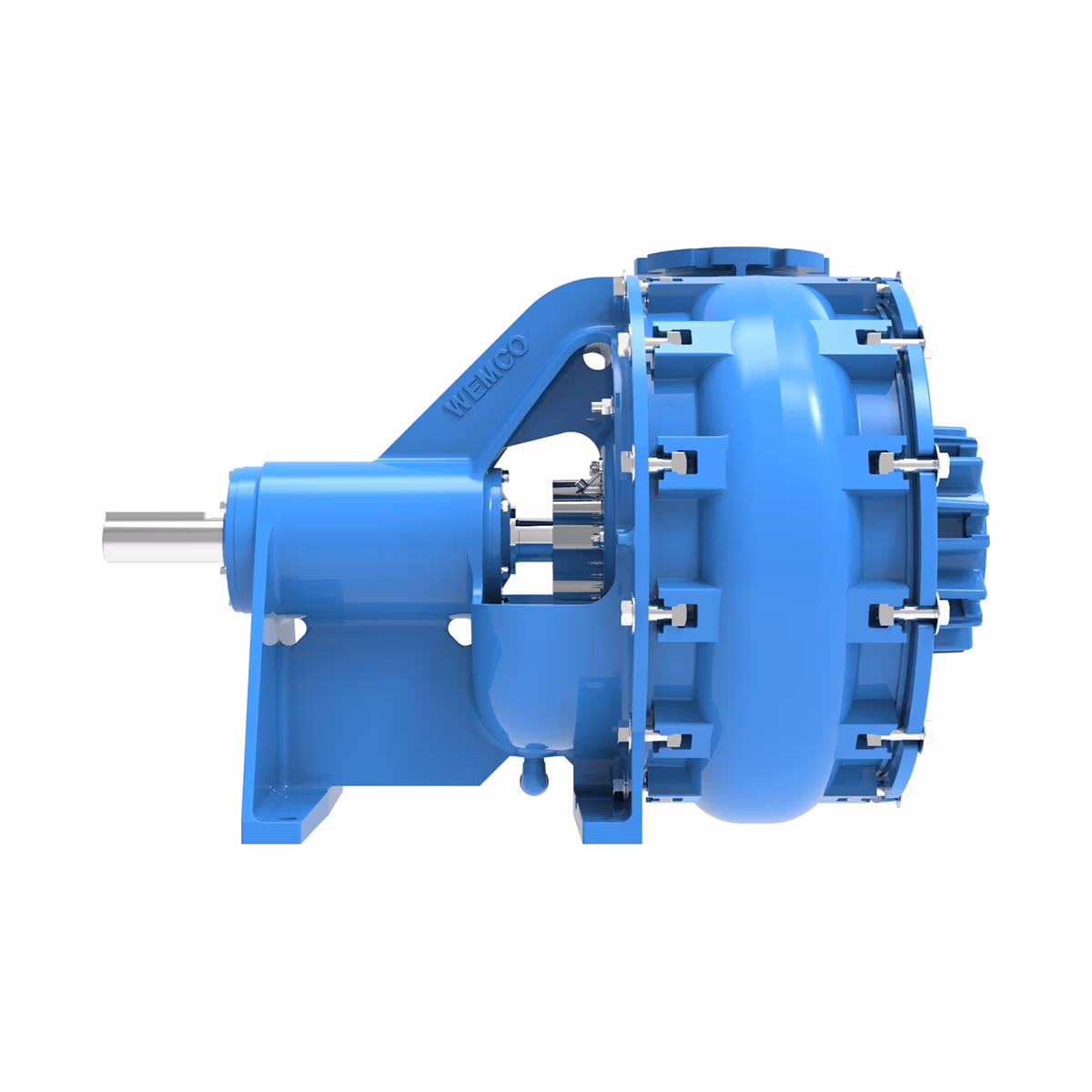

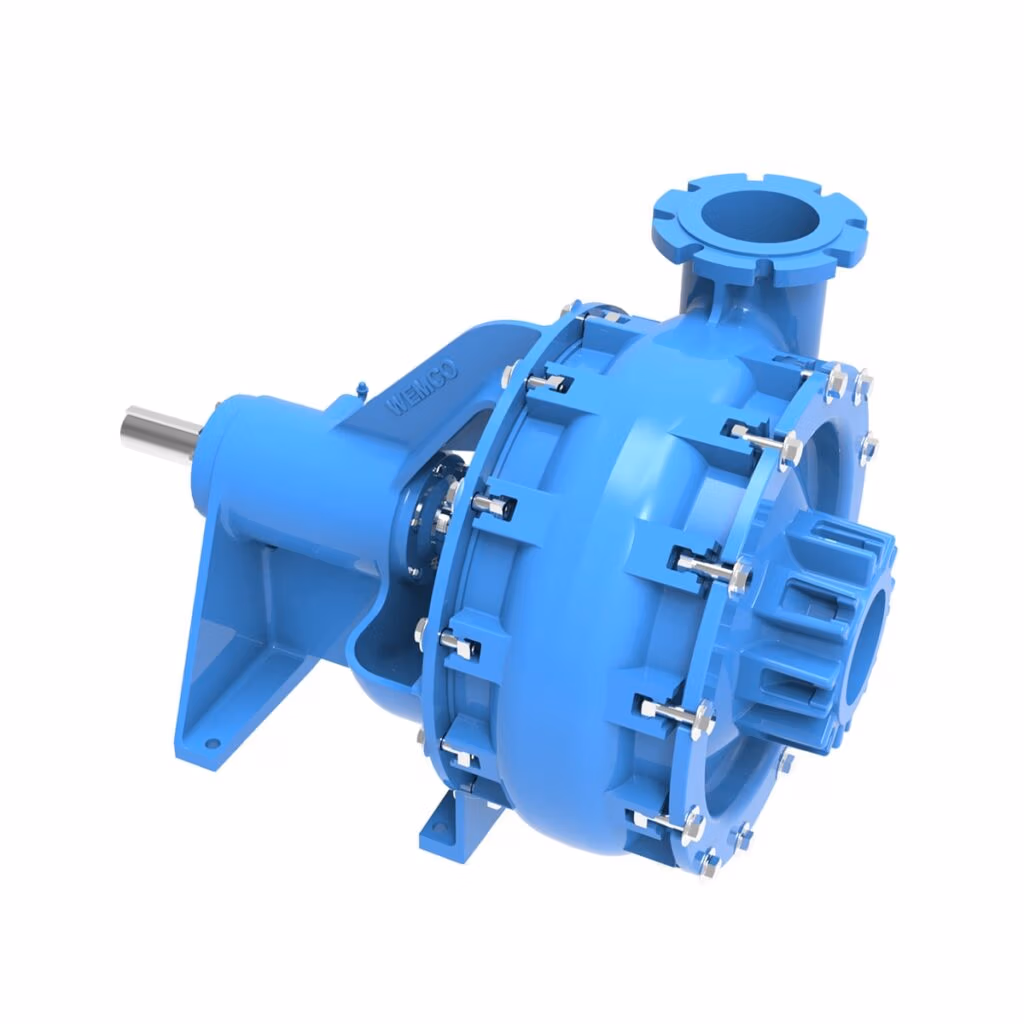

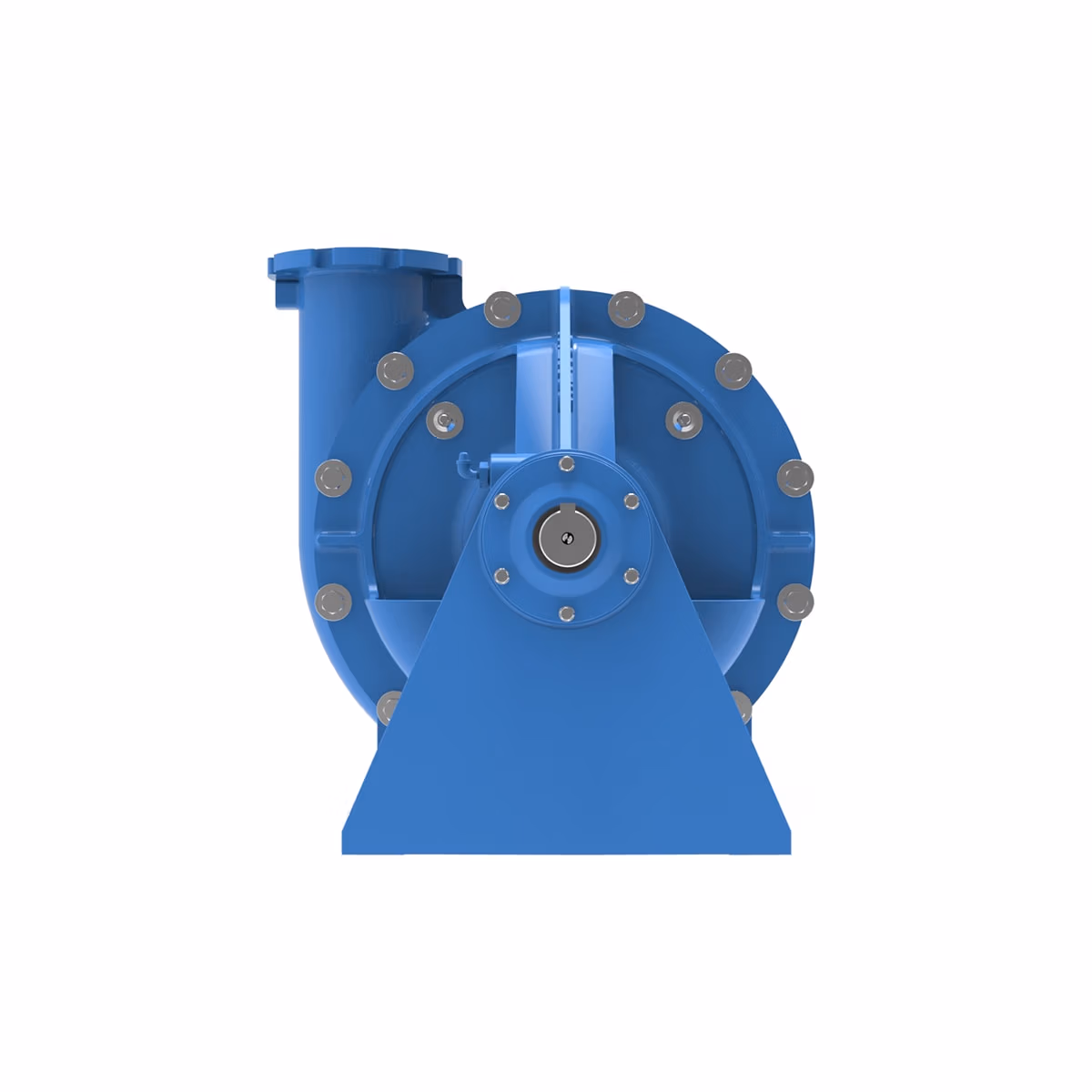

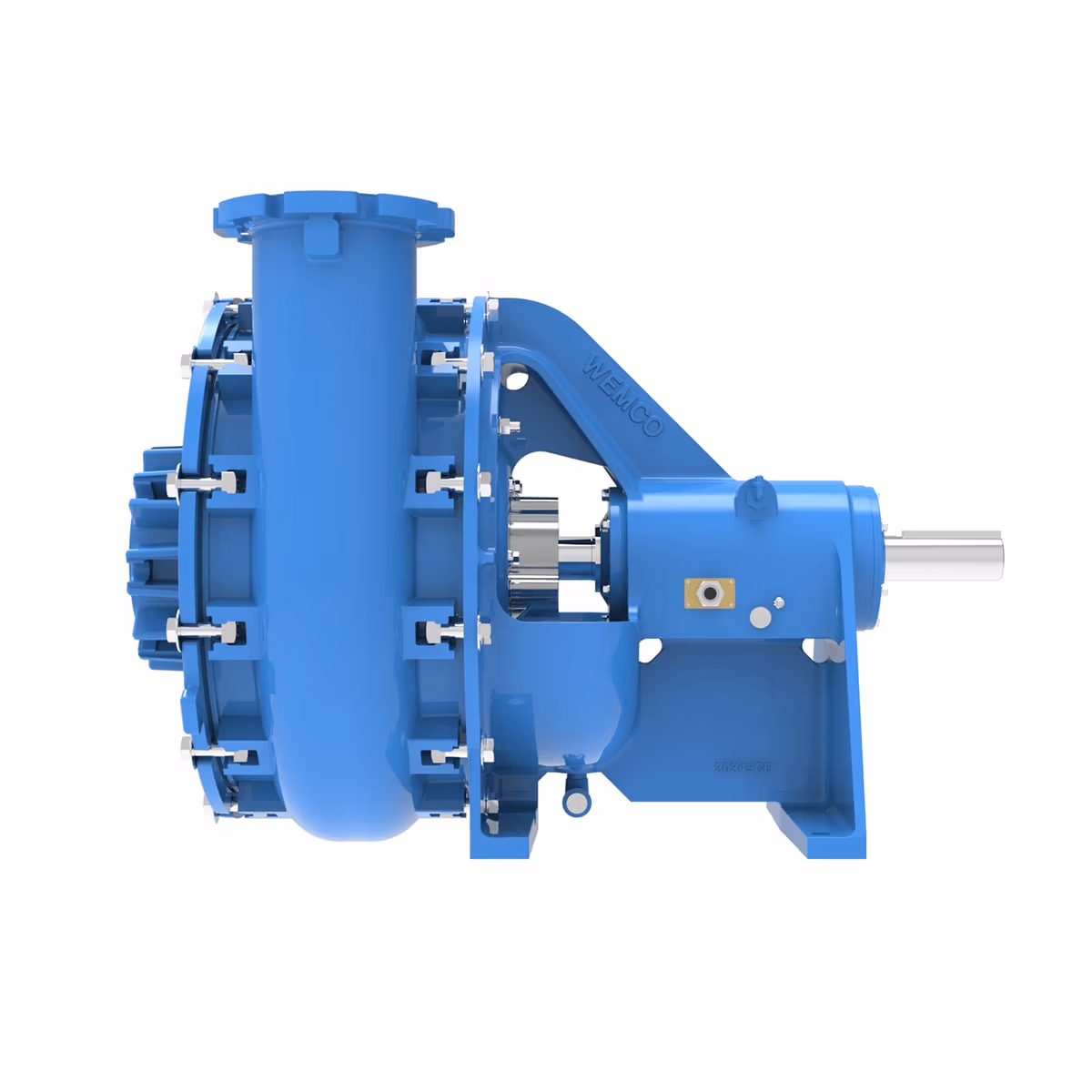

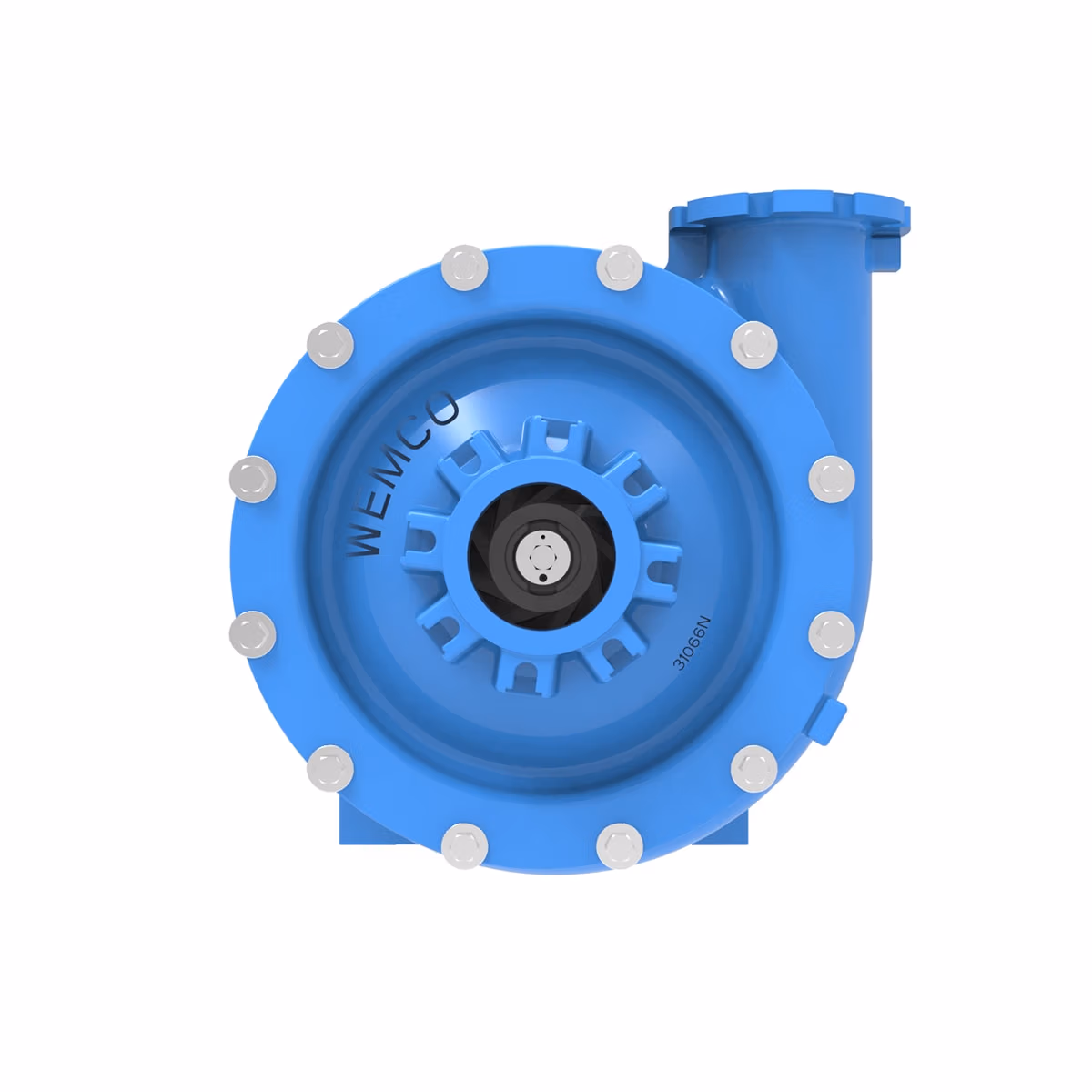

The WEMCO® Torque-Flow® is a recessed impeller pump designed by industry experts to handle challenging abrasive grit/sludge, chemical, and large solids application.
The WEMCO® Torque-Flow® Model C is the industry’s toughest grit-handling vortex pump.
Key Features & Benefits*
- The original recessed impeller pump
- Fully recessed cup-type impeller
- Replaceable hard iron wear plate
- Two-piece case with replaceable suction piece
- Wet-end parts available in 650+ Brinell hardness
- SST wet end available on some models
Applications
- Wastewater treatment
- Grit & sludge
- Chemicals
- Abrasives
- Fluids with large solids
Capacity Head
- 0 – 230 ft. (70.1 m)
Flow
- 0 to 4,500 gpm (1,022 m³/h)
Configurations
- Horizontal/Vertical
- Belt drive
- Direct connect
- Submersible
- Cantilever
Size Range & Dimensions
- 1 – 8 inch (25.4 – 203 mm)
Capacity
- 15,000 GPM (31400 m3/h)
Temperature Range
- 32ºF (0°C) – 200ºF (93°C)
Materials Case & Impeller
- Cast iron
- Hi-chrome iron
- Ni-hard
- Stainless steel
- Ductile iron
