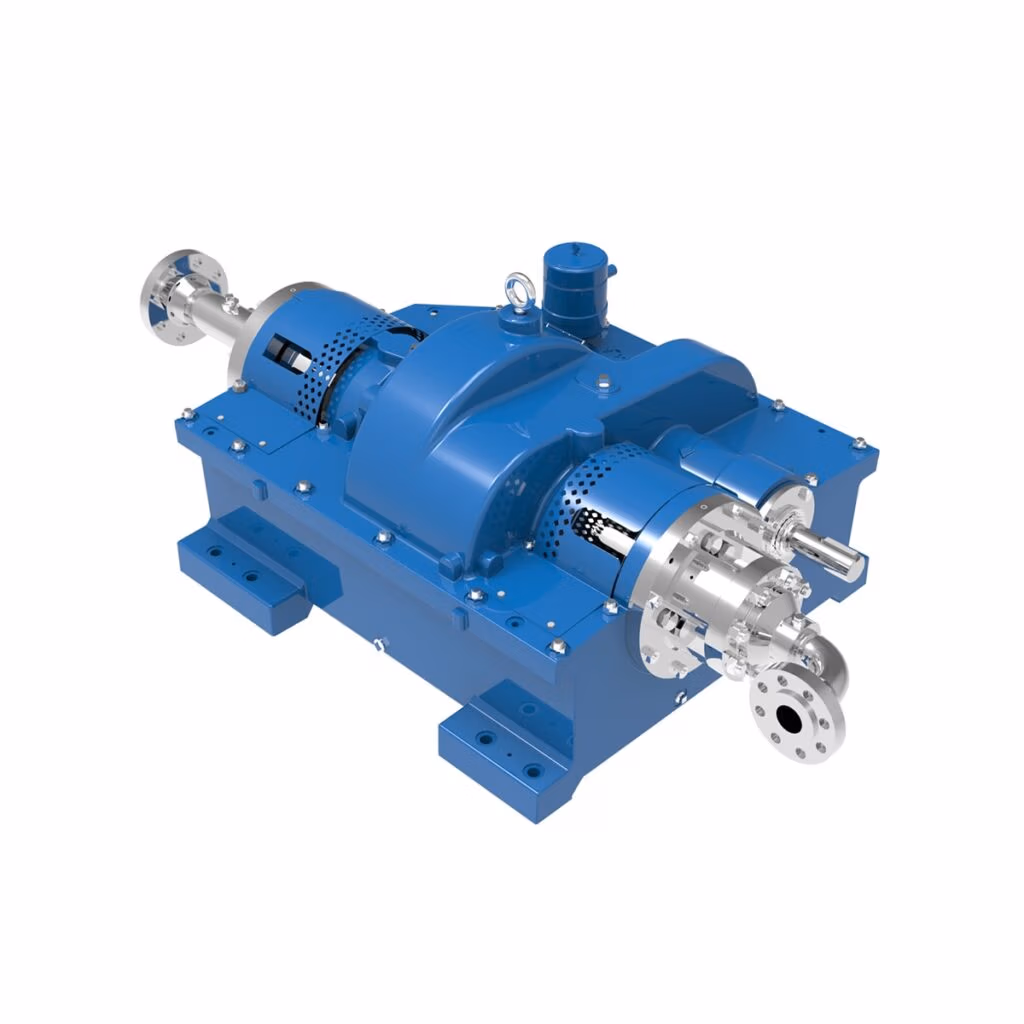

Roto-Jet®
RO-FT API 610
RO-FT between-bearing configuration provides a reliable, robust, and easy to maintain pump for the midstream and downstream refining, petrochemical, and chemical processing industries.
The operating characteristics of the Roto-Jet® RO-FT API 610 pump are similar to a conventional centrifugal pump. Energy is added to the fluid via the rotor, and the stationary Pitot tube converts the fluid velocity energy into static pressure.
In addition, the Roto-Jet® RO-FT API 610 pump is specifically designed to achieve a broad operating range. These attributes result in improved mechanical seal and bearing life to maximize Mean Time Between Failure, and decrease operational and maintenance costs, which make the Roto-Jet® the most cost effective choice for low-flow, high head process applications.
Key Features / Benefits
- API 610 11th Edition compliant
- Standard API 682 cartridge seals
- No external lube system required
- No wear rings or close running clearances
- Low NPSH3 without the use of an inducer
- Robust design is insensitive to process upsets
- Pulsation free flow over the entire head-flow curve
- Integral gearbox is isolated from process seal leakage
- Reduced life cycle cost by optimizing hydraulic efficiency
- Process seals exposed only to suction pressure to maximize seal life
- Between bearings arrangement minimizes shaft deflection at the seals
- Bearing L10 life exceeds API 610 requirements using rolling element bearings
- Patented rotor eliminates radial and axial thrust as a function of flow rate and suction pressure
- High heads achieved in a single stage at low operating speeds compared to other low-flow
- High-head pumps
Materials - Rotor
- Carbon Steel (A216 WCB)
- 12% CR (A487 CA6NM)
- 316 AUS (A351 CF3M)
- Duplex (A890 CD4MCu)
Shaft Assembly
- Carbon Steel (A216 WCB)
- 316 AUS (A351 CF3M)
Pilot Tube
- 17-4-PH Stainless Steel (A564) or Inconel 718
Applications
- Caustics processing
- Amine treating
- Reflux streams
- Transfer services
- Boiler feed
- NaphthaWash water
- Reactor feed
- Condensate and well injection
- Boiler feed water
- Foul water
- Diesel
- Gasoline
- Kerosene
- Sour water
- Depropanizer
- Deethanizer
Temperature Range
- Up to 550ºF (290ºC)
Capacity - Head
- Up to 5,000 ft. (1,500 m) Flow: up to 450 gpm (102 m³/h)
Flanges
- Carbon Steel (A216 WCB)
- 316 AUS (A351 CF3M)
Input Shaft
- 4140 Carbon Steel (A193)
Gear Case Material
- Carbon Steel (A216 WCB)
