Gabbioneta Pumps® Termomeccanica Pompe

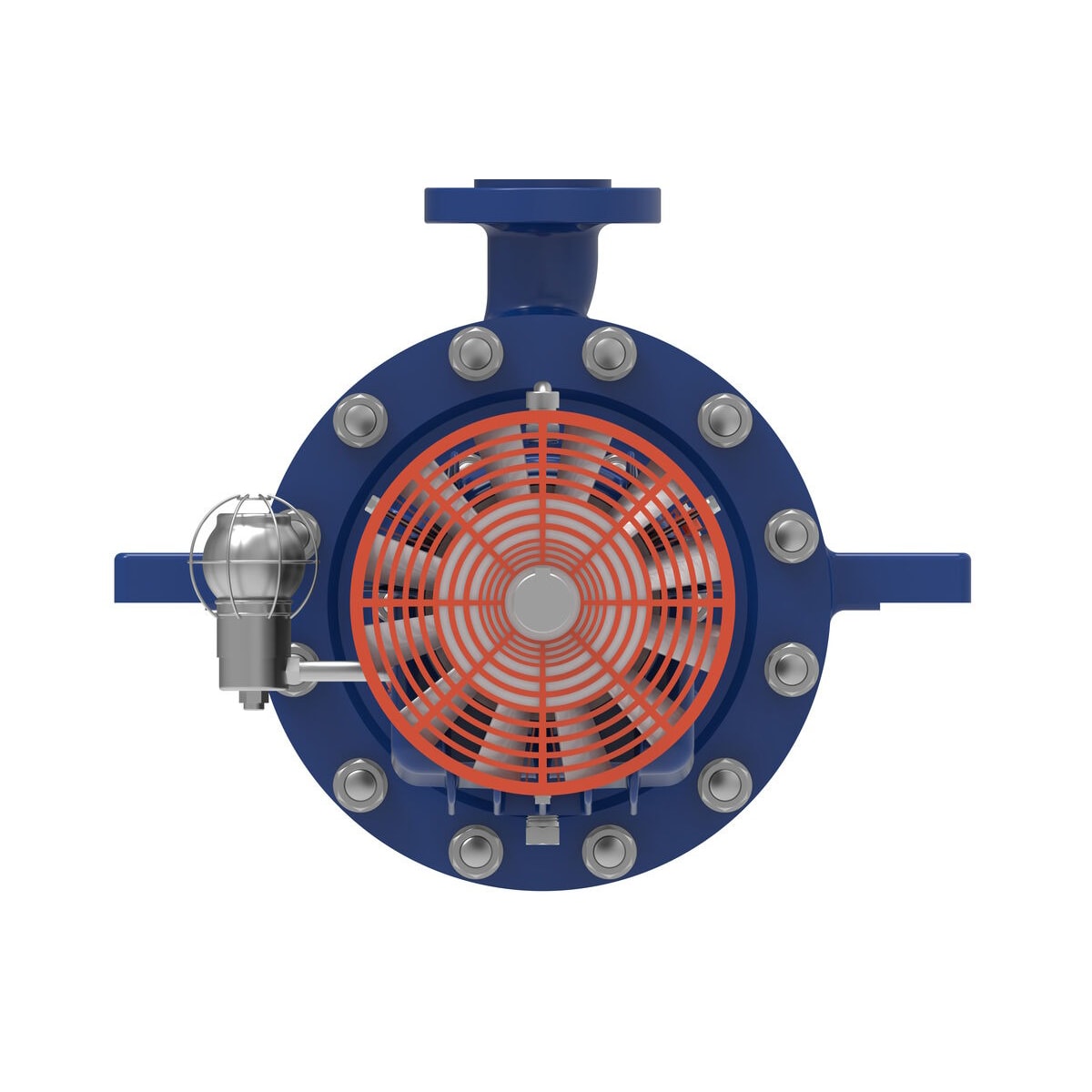

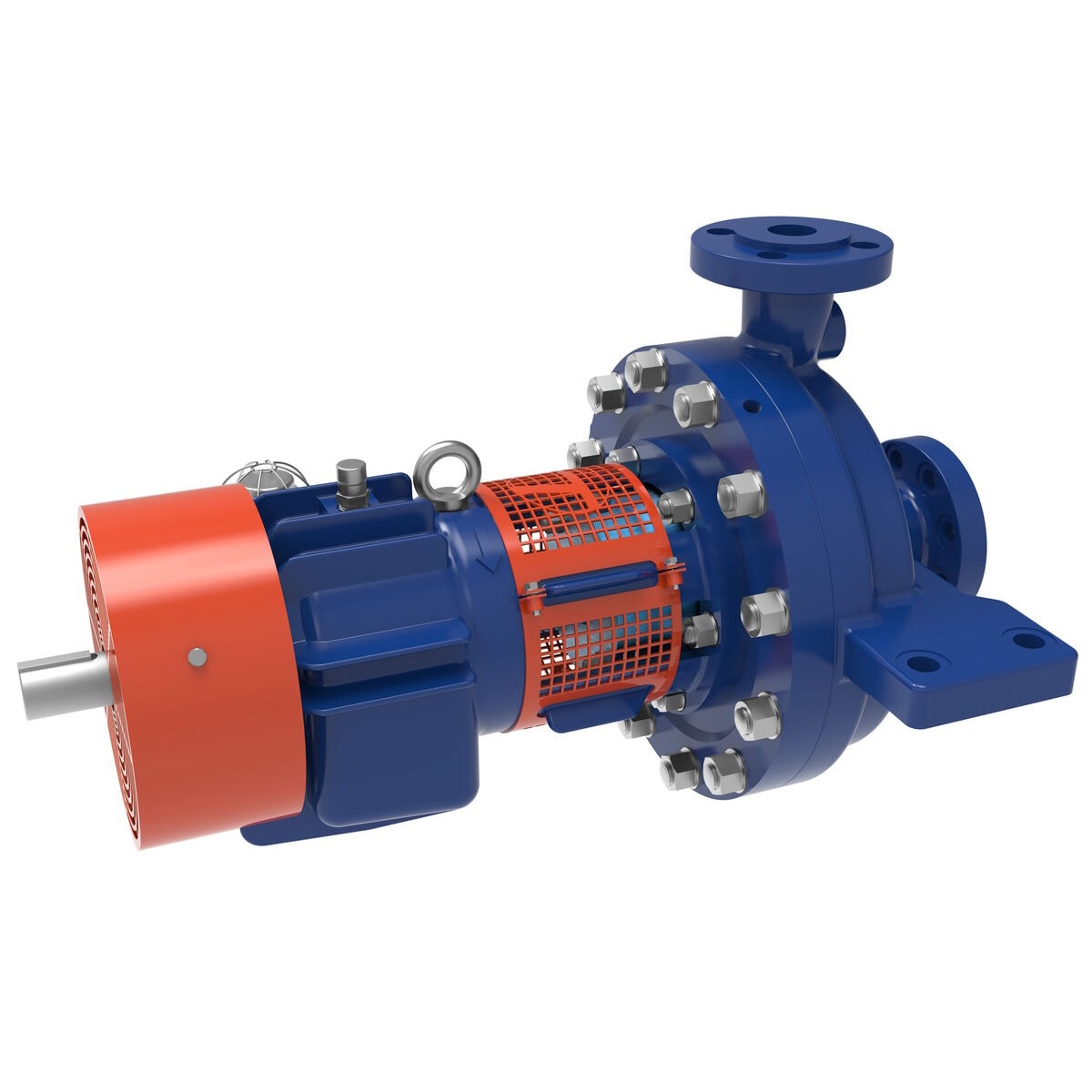

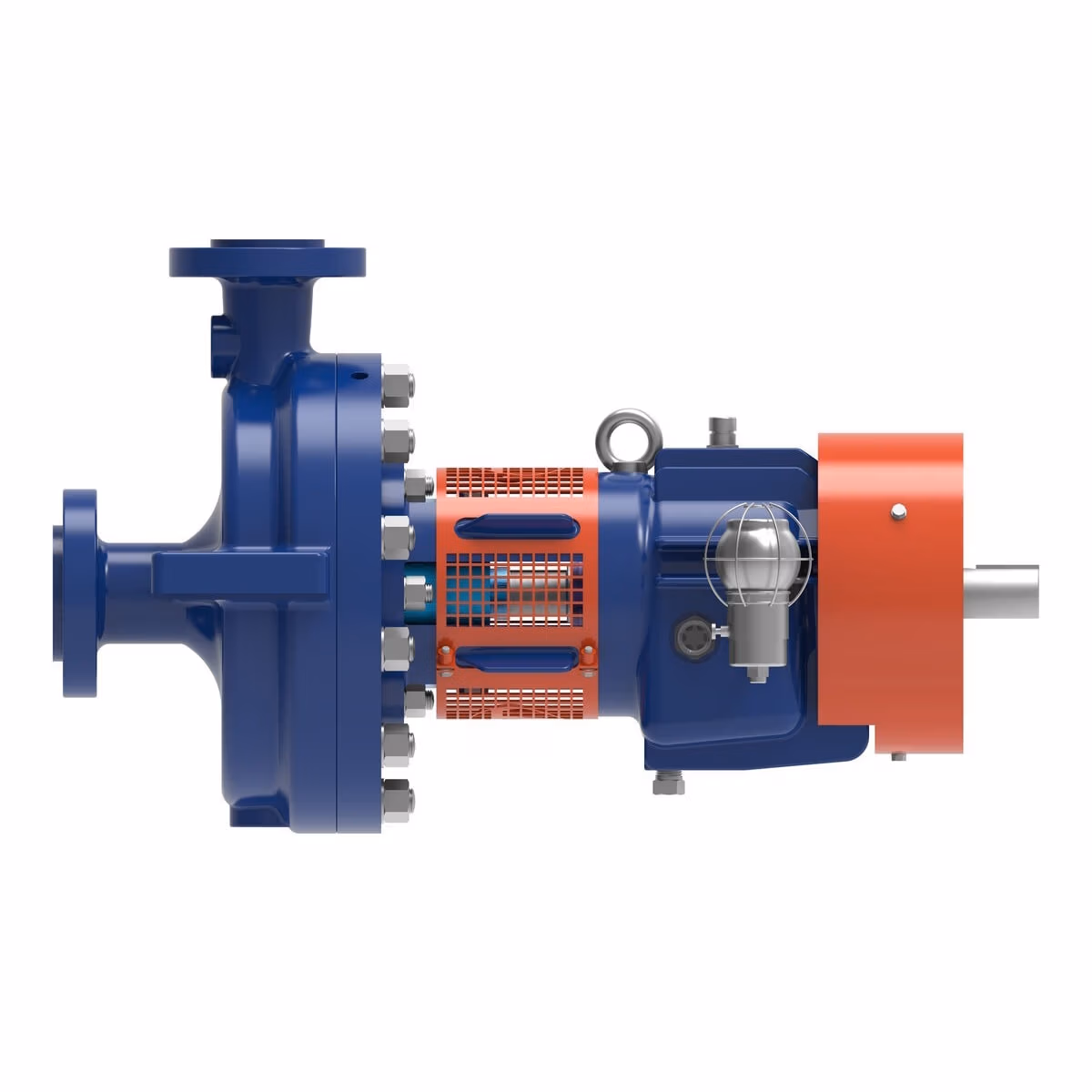

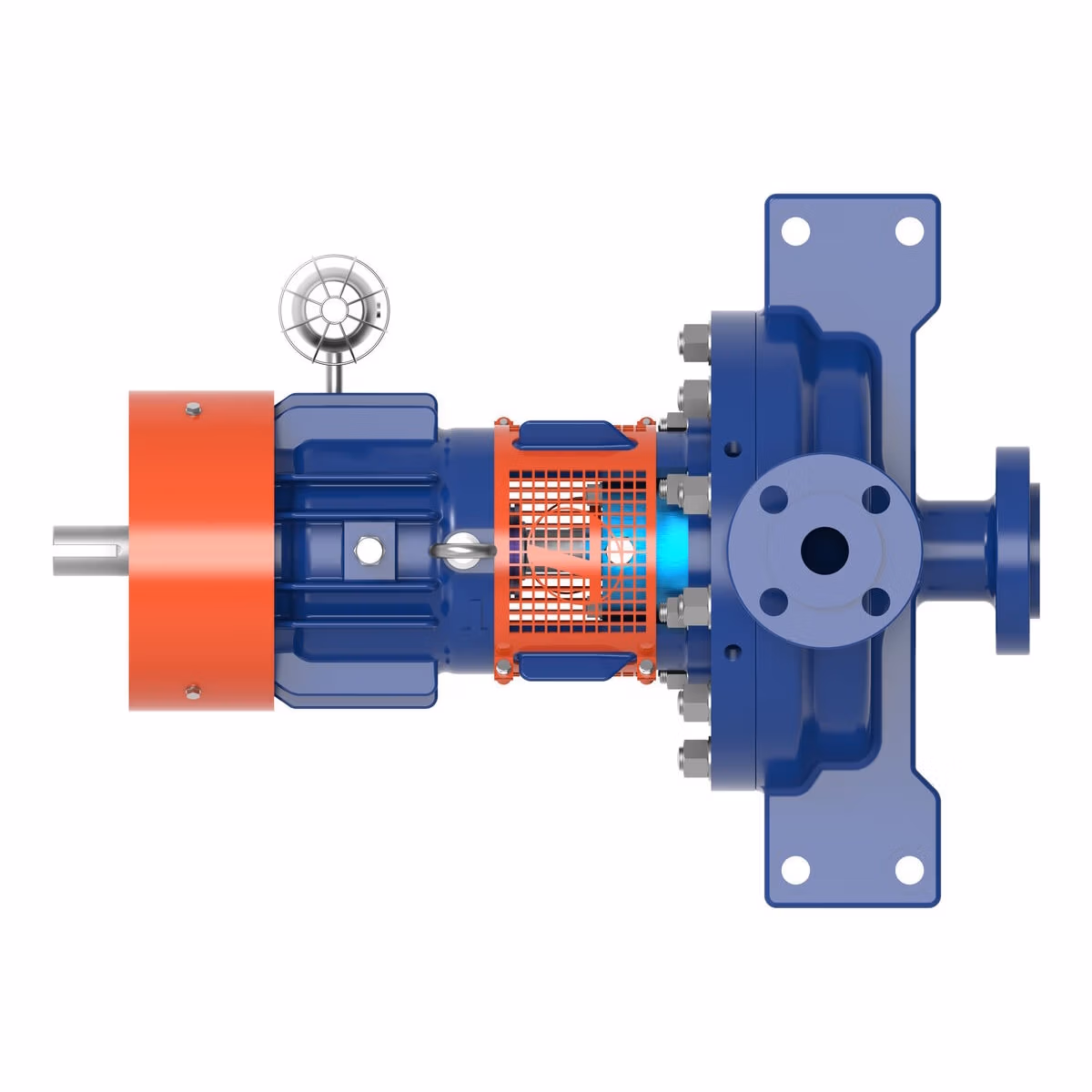

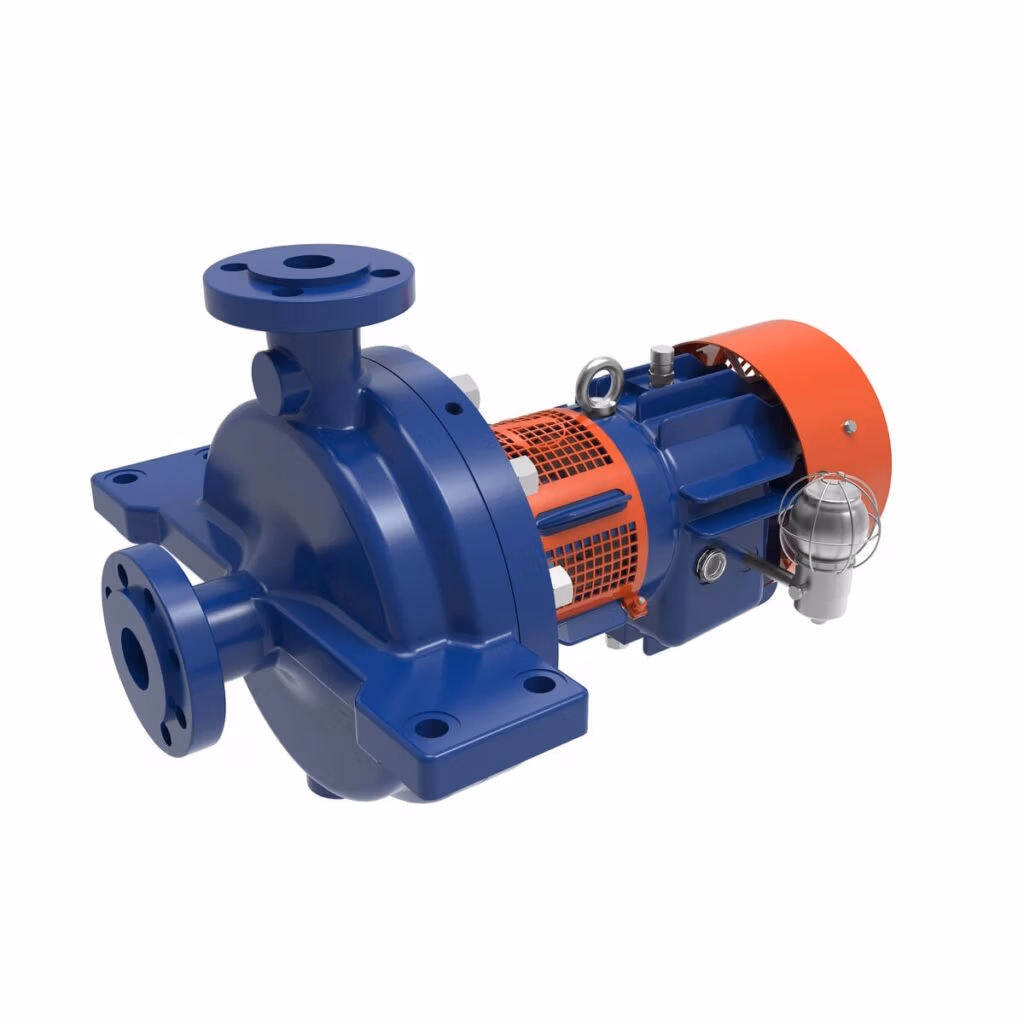

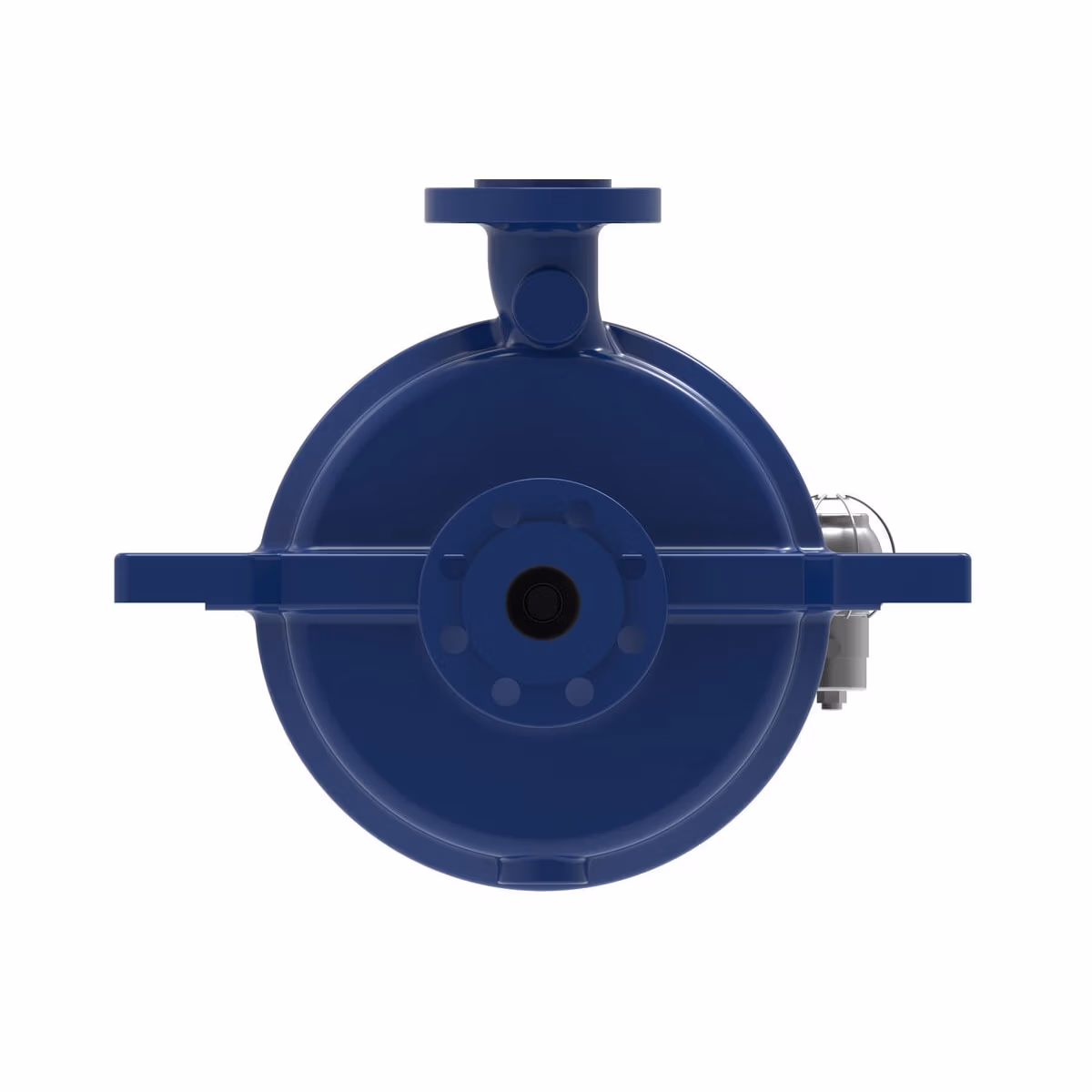

RL OH2 type API 610 Centrifugal Pump
Trillium Flow Technologies’ updated RL pump range combines the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® and Termomeccanica Pompe brands.
The expertise in designing and manufacturing OH2 low-flow, high-head pumps dates back to the 1960s, with thousands of units installed globally.

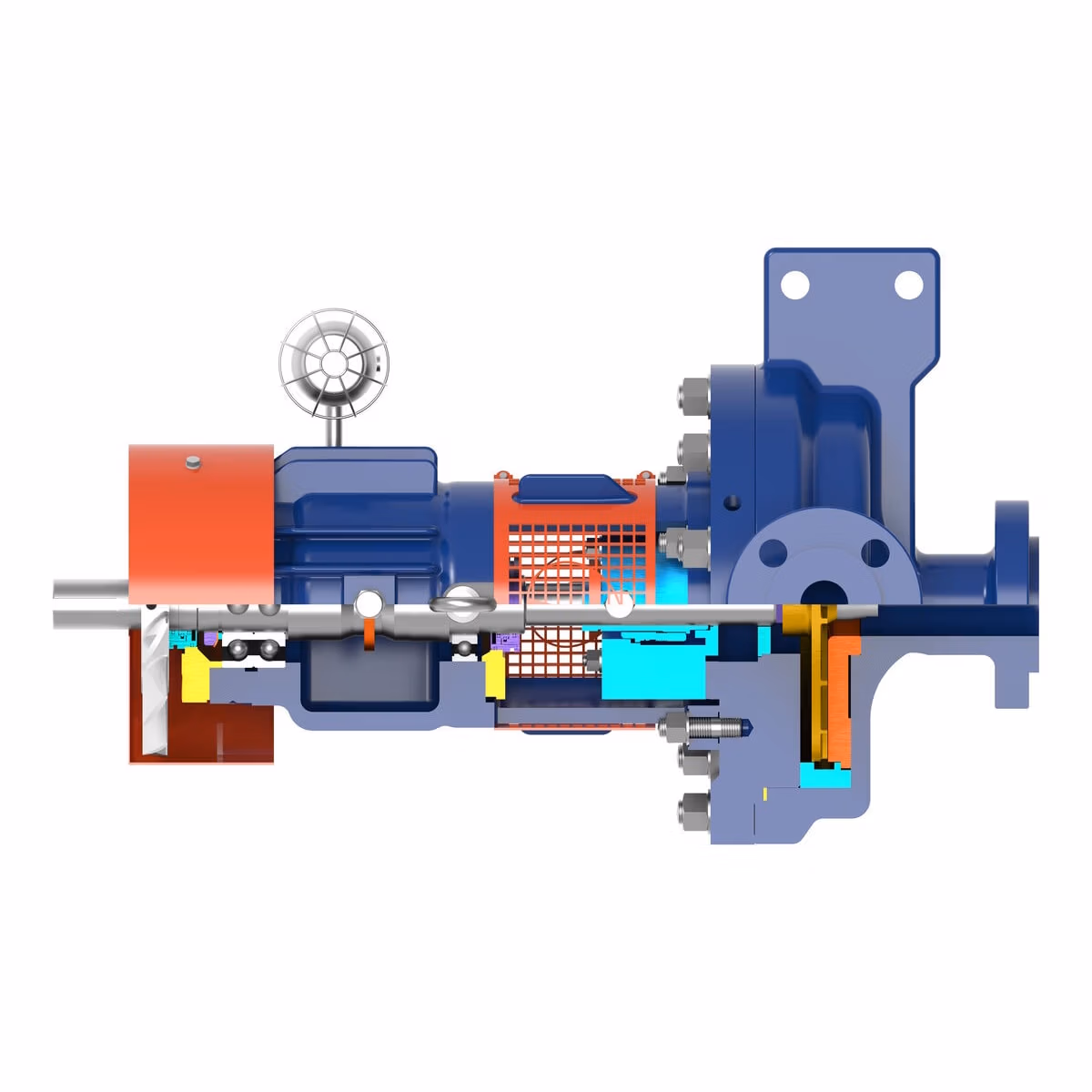

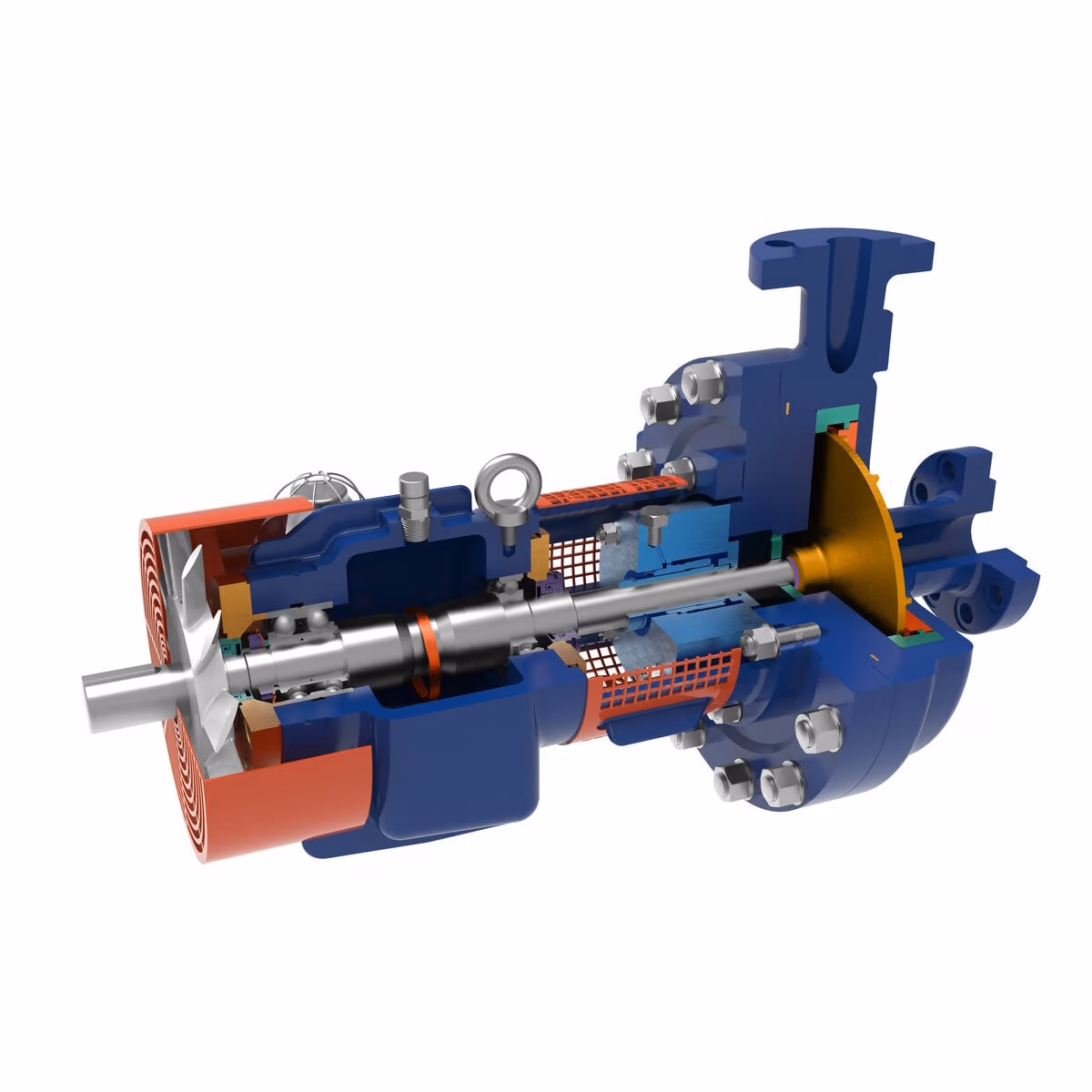

This API-compliant RL pump range is engineered with a back pull-out design for ease of maintenance and maximum hydraulic flexibility; our OH2 pump excels across many applications and features a Barske style impeller for low flow, high head applications.
Key Features
- Fully API 610 compliant
- Integral case connections to avoid non-destructive testing on larger frame sizes
- Heavy-duty shaft to minimize rotor defection and maximize uptime
- API 682 compliant seal chamber
- Single Impeller with optimised hydraulics to minimise NPSH requirements
- Heavy-duty case suitable for 2x API nozzle loads

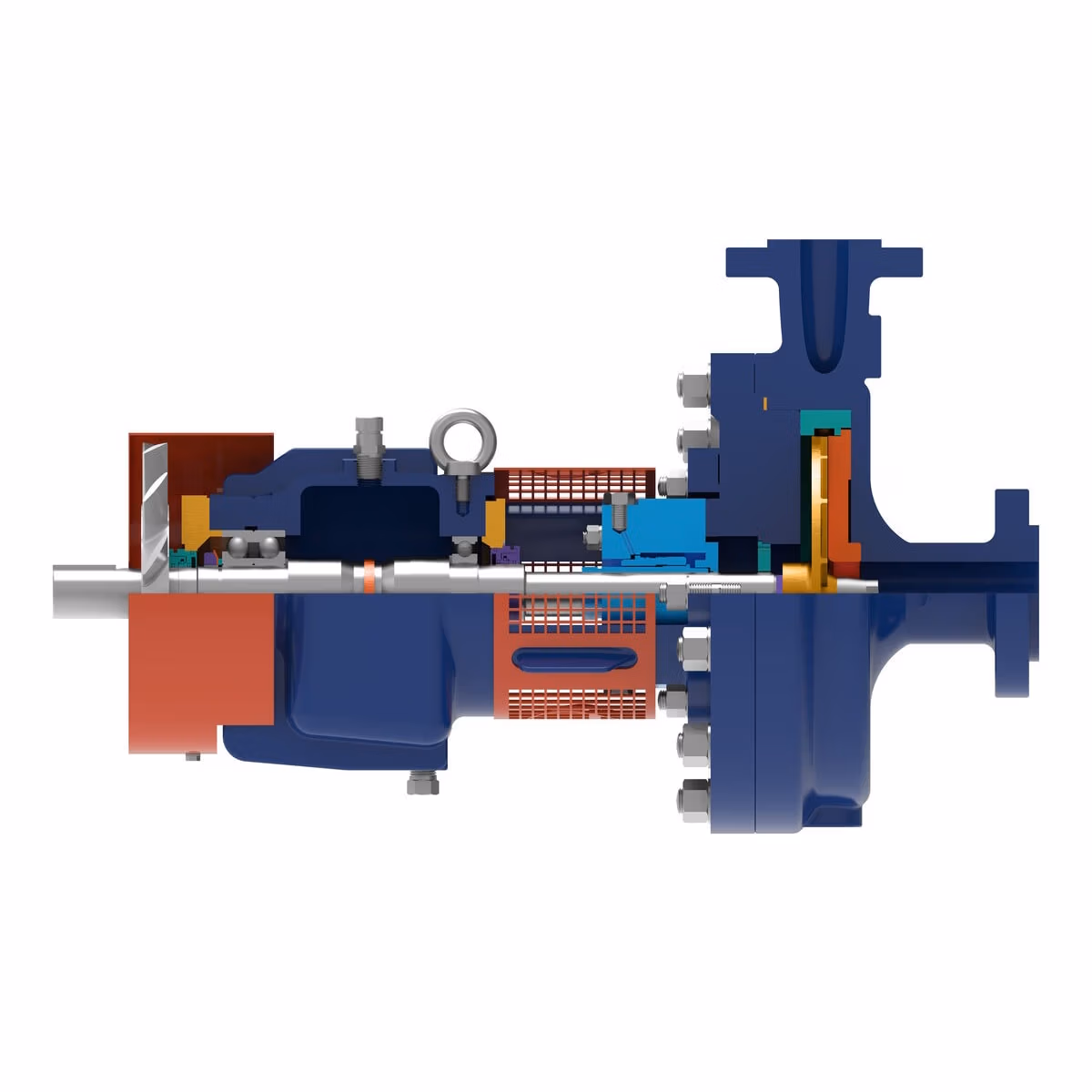

- Back pull out design for simple maintenance
- Back pull out design also allows quick hydraulic re-rates

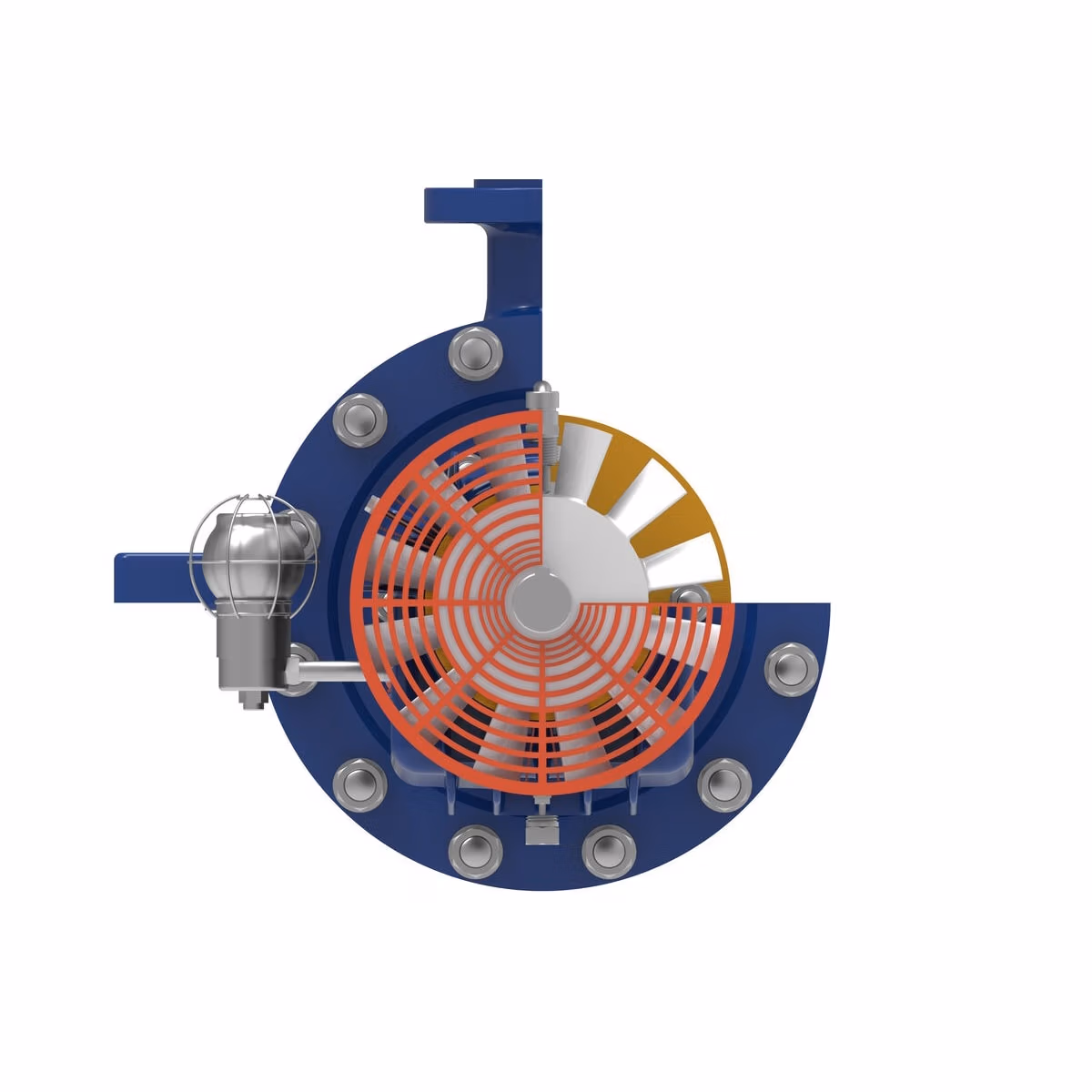

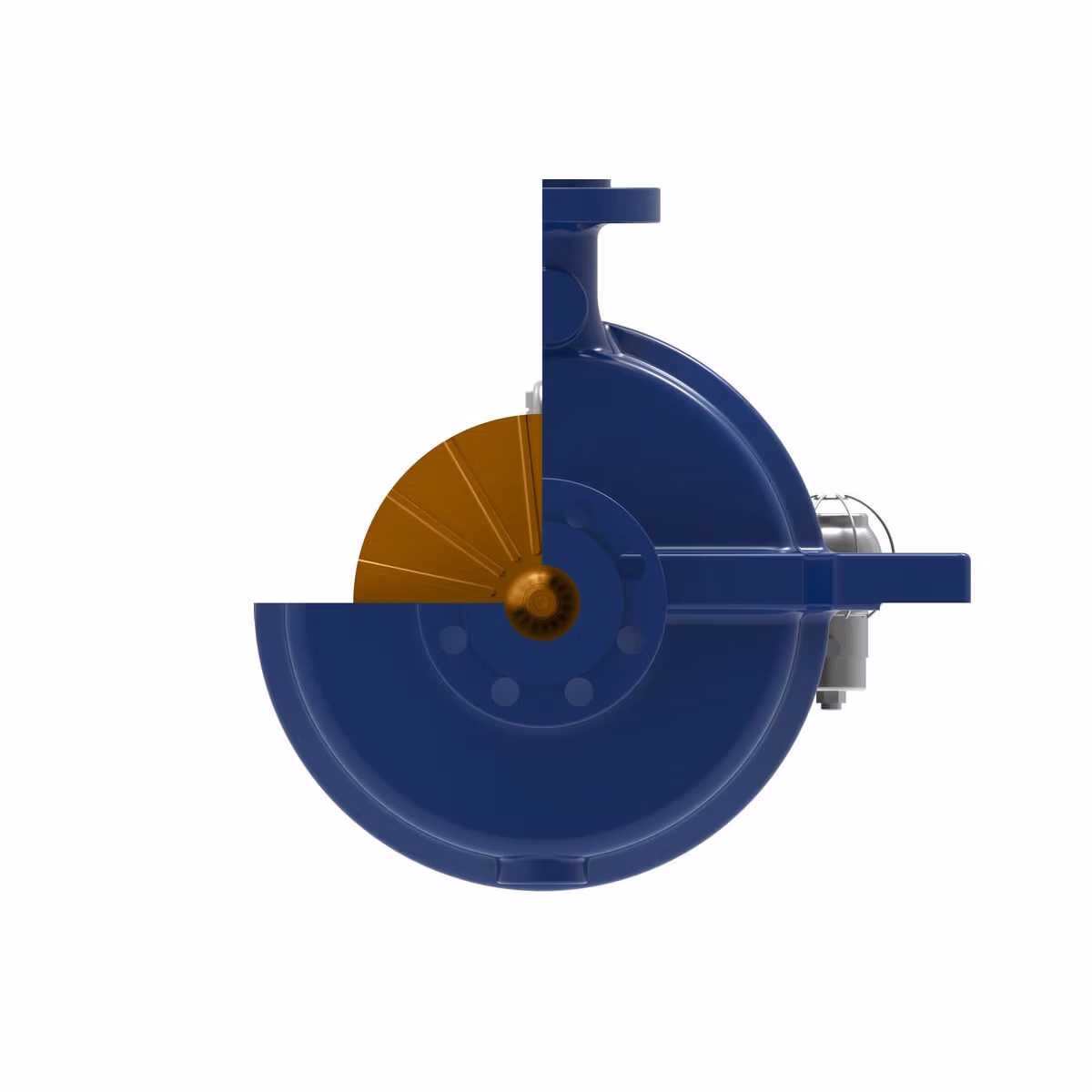

- Barske impeller for low flow, high head applications
Options
- All API material options:
- S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
- High temperature alignment options
- Bearing arrangements to accommodate Oil mist, purge mist and various cooling configuration.
- Magnetic coupling options also available
- Specialist Options: Inducer, High Temperature Alignment
Main Applications
- High Temperature Refining
- Hydrocarbon Transfer
- Petrochemical plants
- Booster applications
