Gabbioneta Pumps®

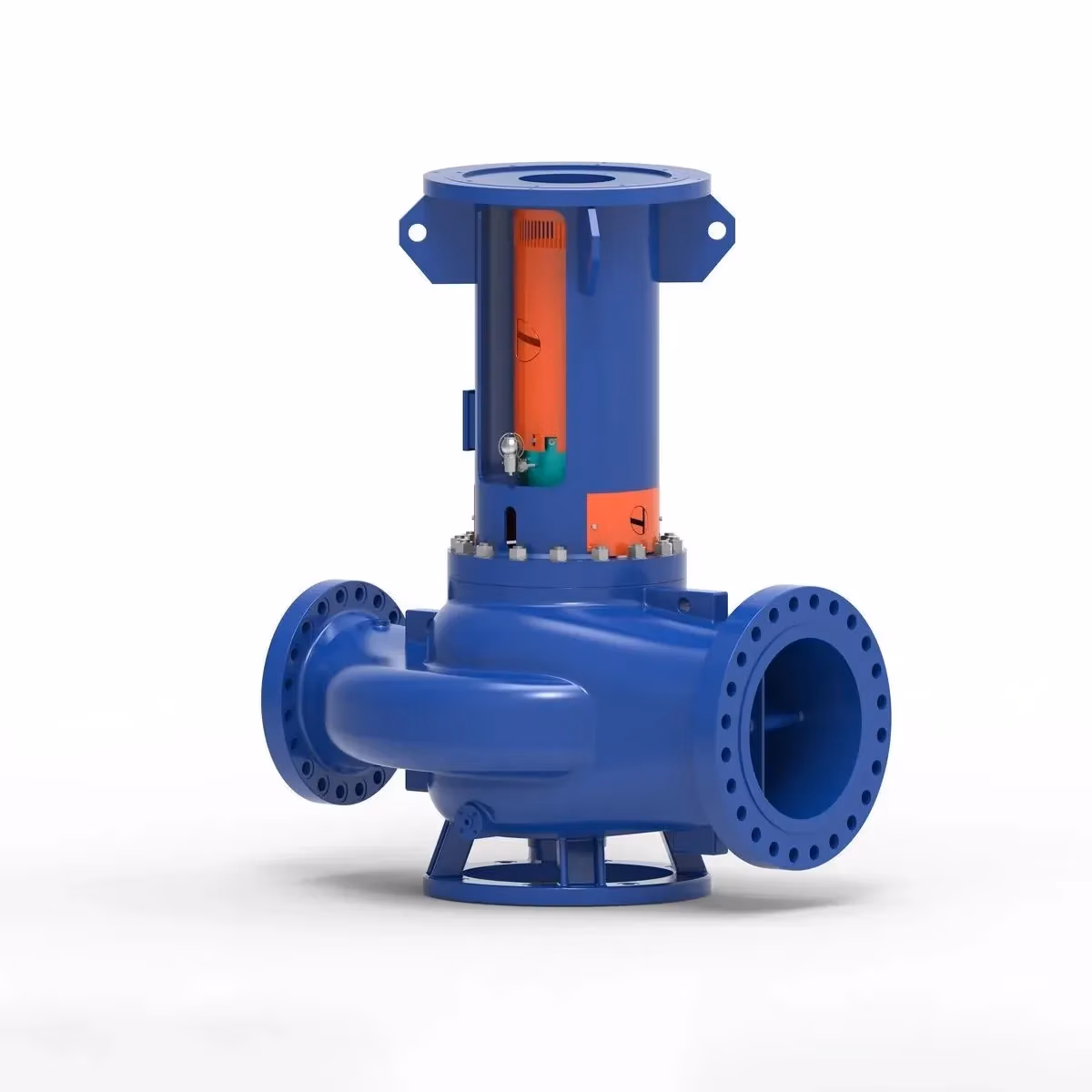

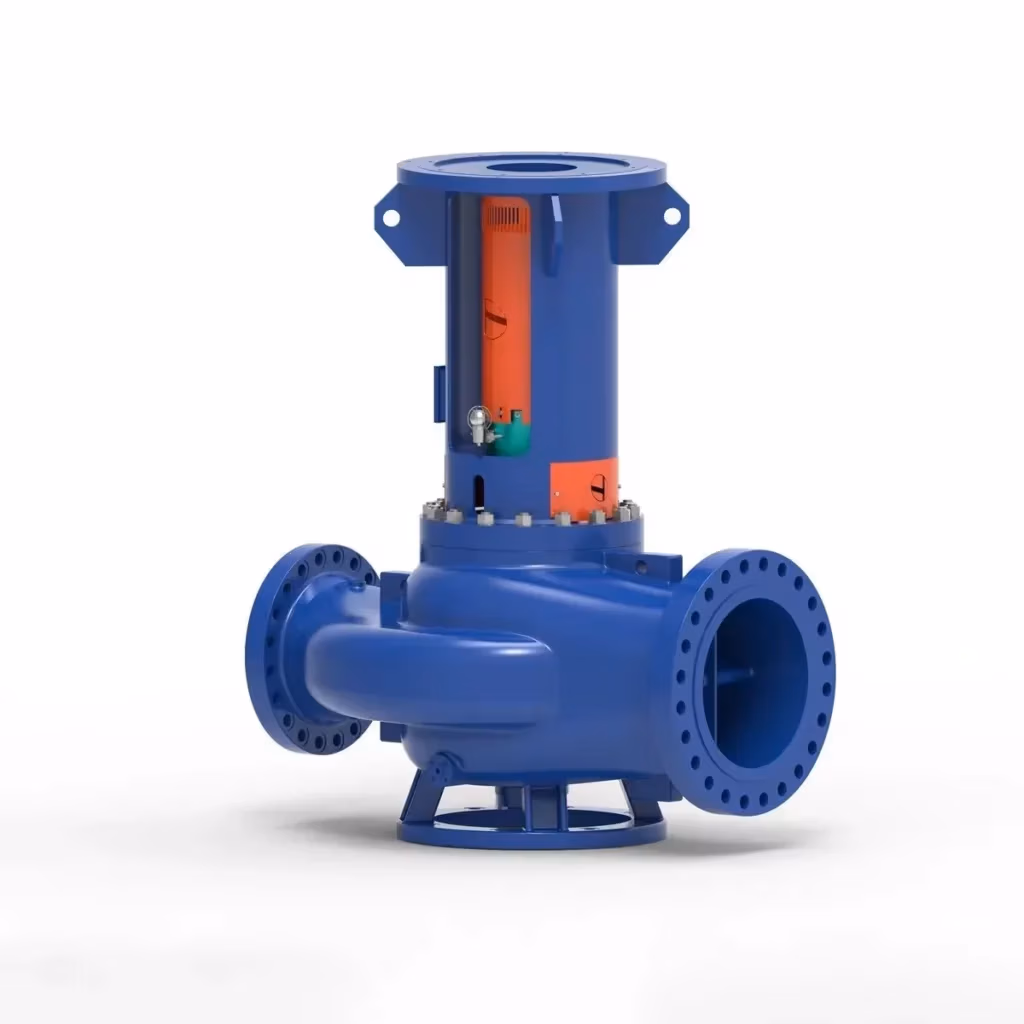

DSIL OH3 Type API 610 Centrifugal Pump
Trillium Flow Technologies updated BSD pump range builds on the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® brand. Our expertise in designing and manufacturing OH3 pumps dates back to the 1970s, with thousands of units installed worldwide. This API-compliant OH3 pump range is an in-line, vertically suspended, one-stage pump with a double suction first stage impeller.
Key Features
- API 610 compliant
- Design optimised for inline installation to accommodate piping stress
- Heavy-duty shaft to minimize rotor defection and maximize uptime
- API 682 compliant seal chamber
- Closed impeller and case wear rings to minimise axial thrust
- Double suction impeller to minimise NPSHr
- Back pull out design for simple maintenance
- Back pull out design also allows quick hydraulic re-rates
Options
- All API material options:
- S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
- Bearing arrangements to accommodate Oil mist or grease [application dependant]
- Reverse rotation devices
Main Applications
- Refinery processing
- Petrochemical processing
- Tank drain
- Facility services
