Gabbioneta Pumps® Termomeccanica Pompe

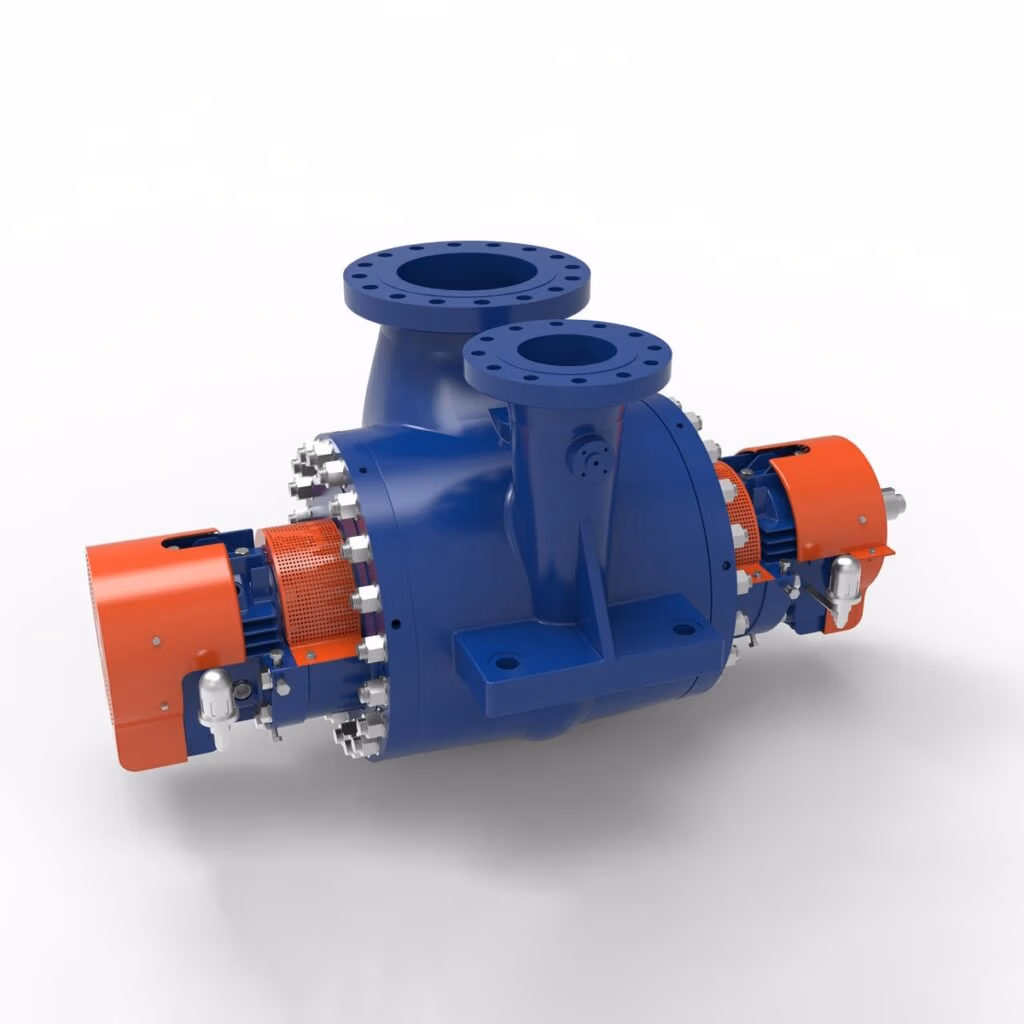

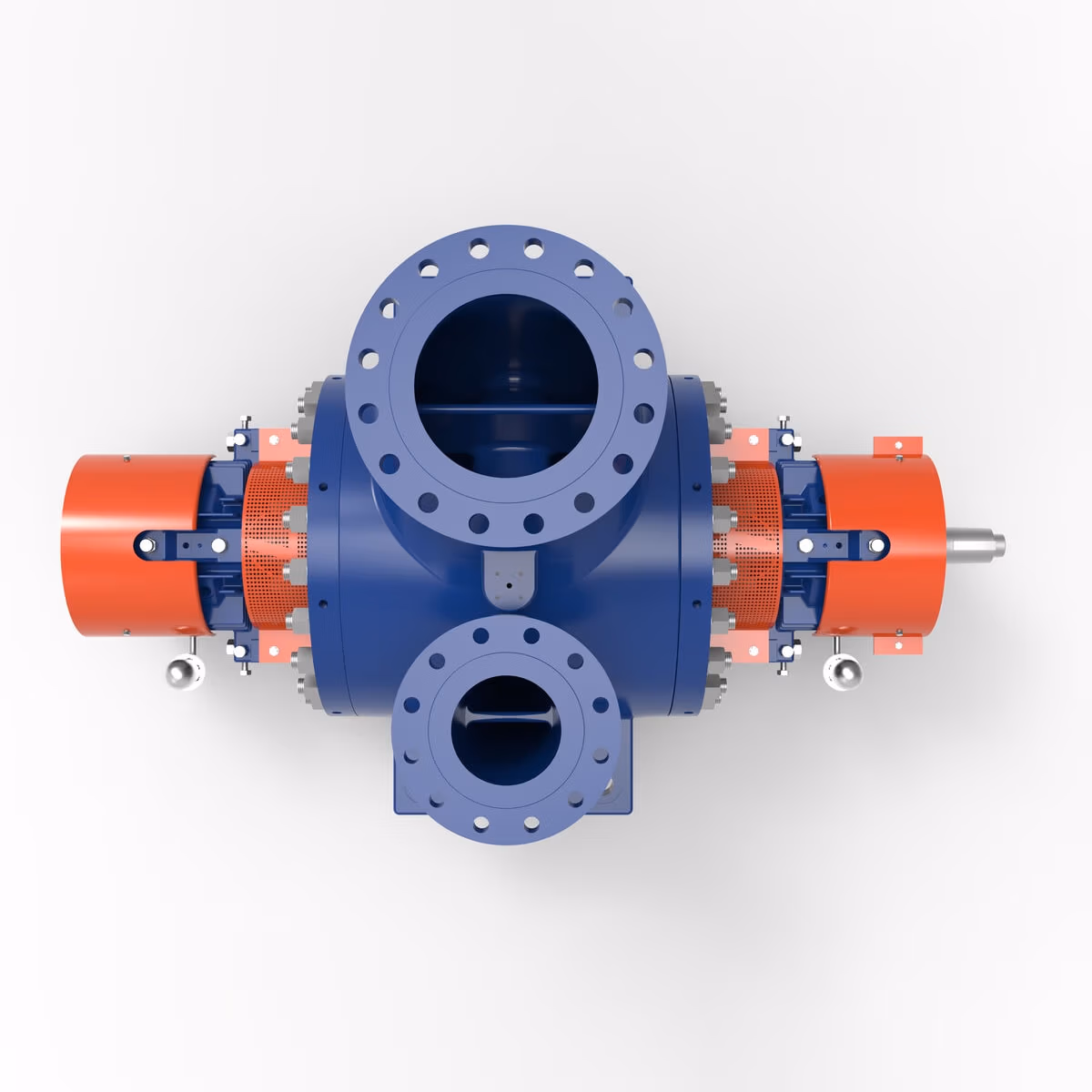

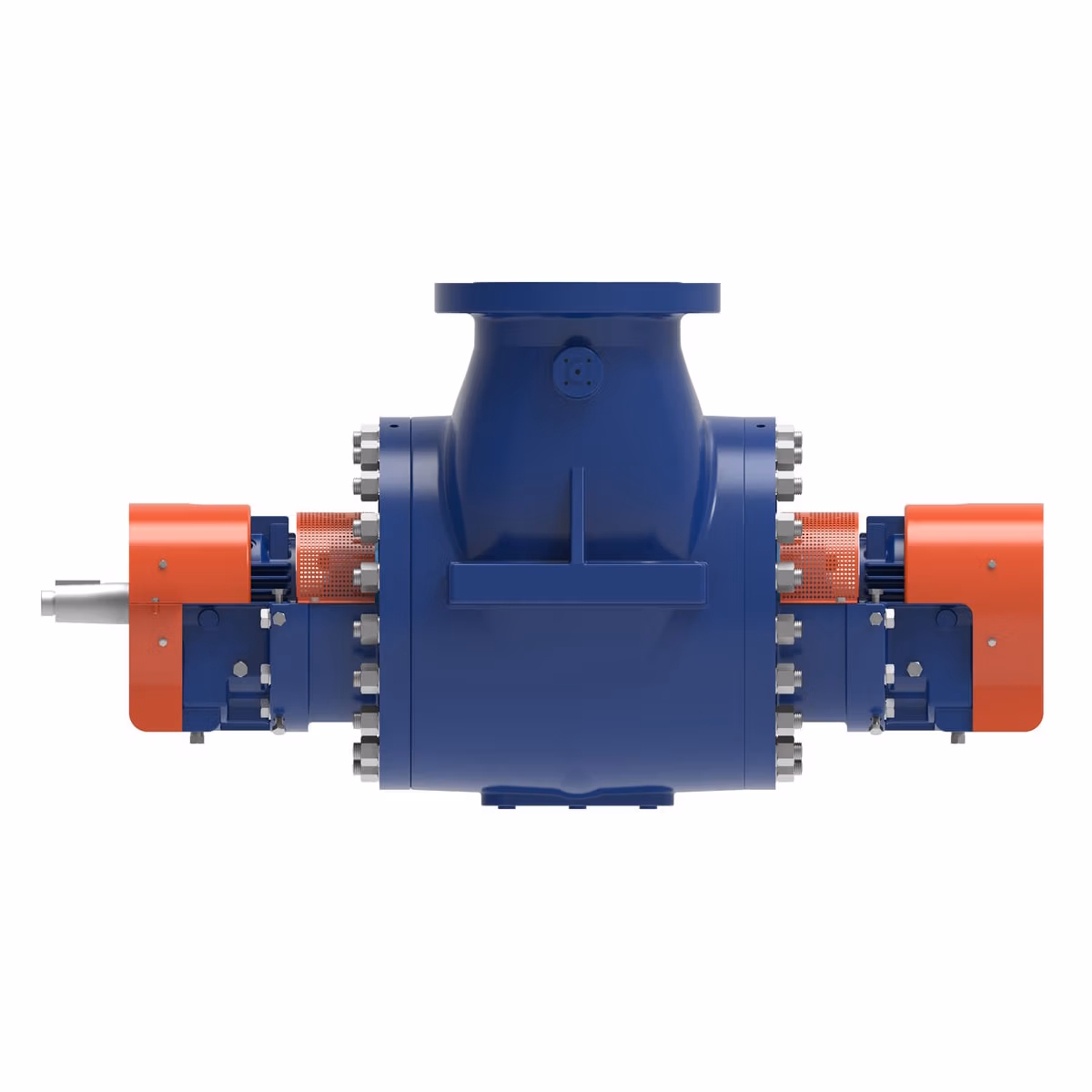

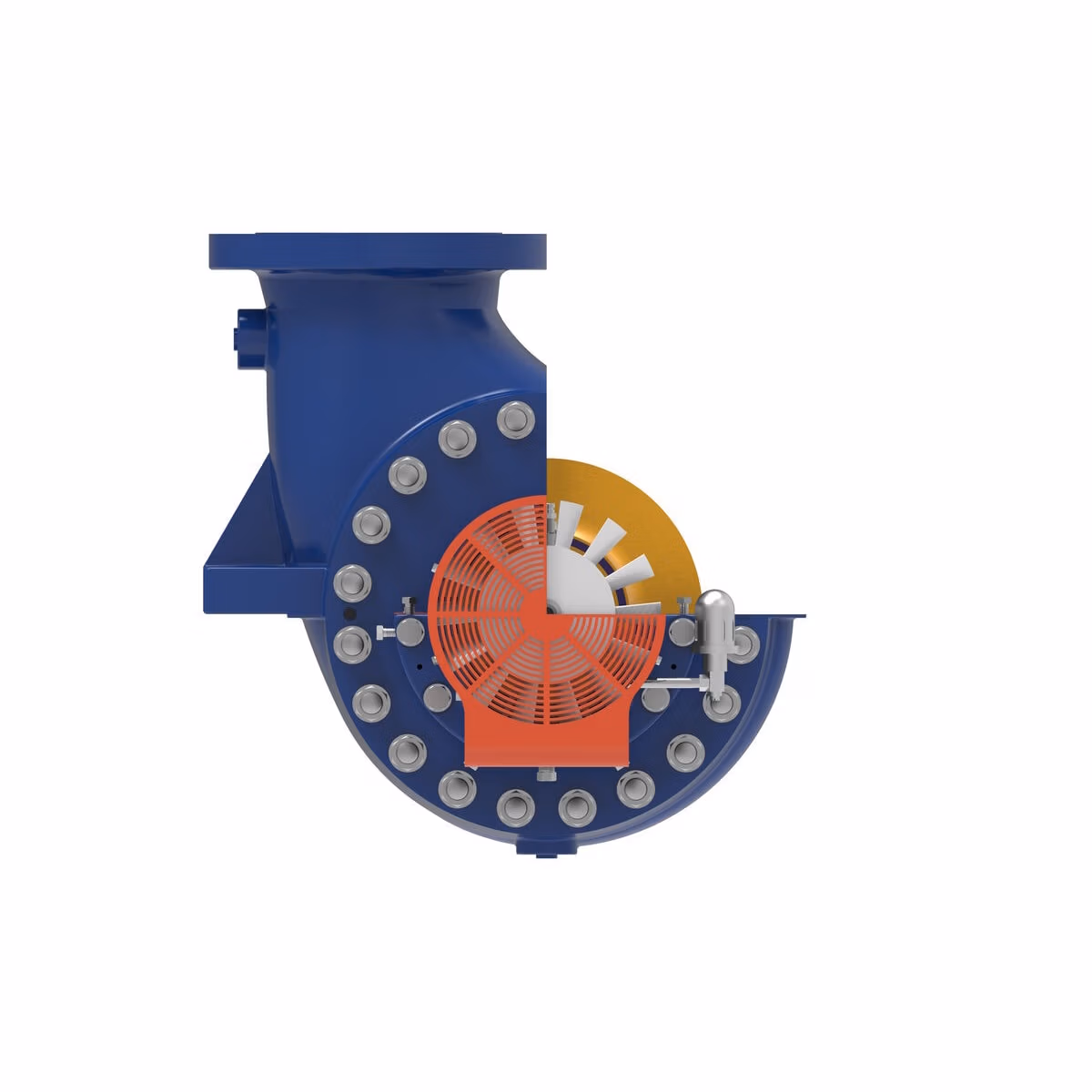

DSA BB2 Type API 610 Centrifugal Pump
Gabbioneta® DSA Pumps offer axial balance, proven reliability, and easy maintenance in the toughest conditions, including temperatures over 120°C.

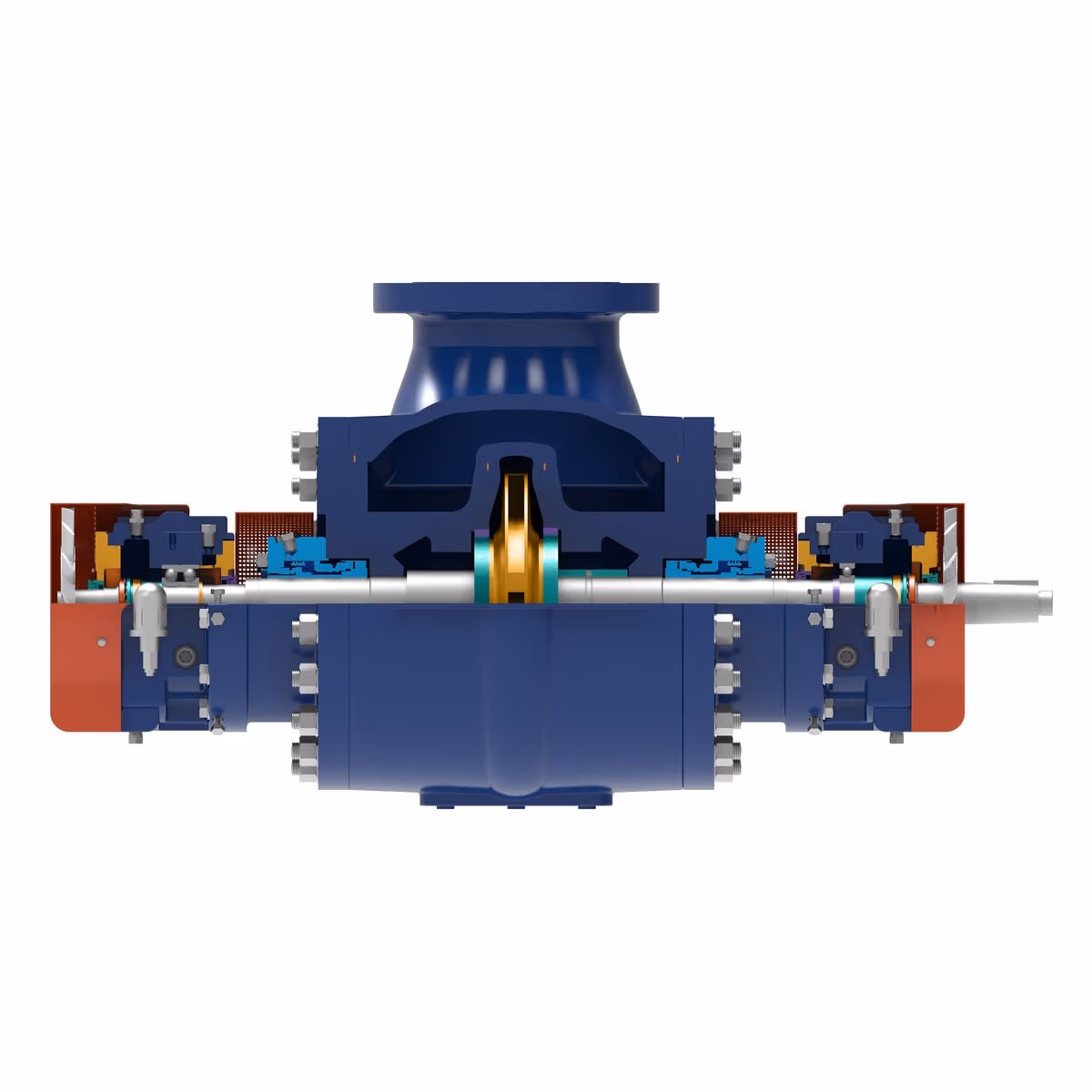

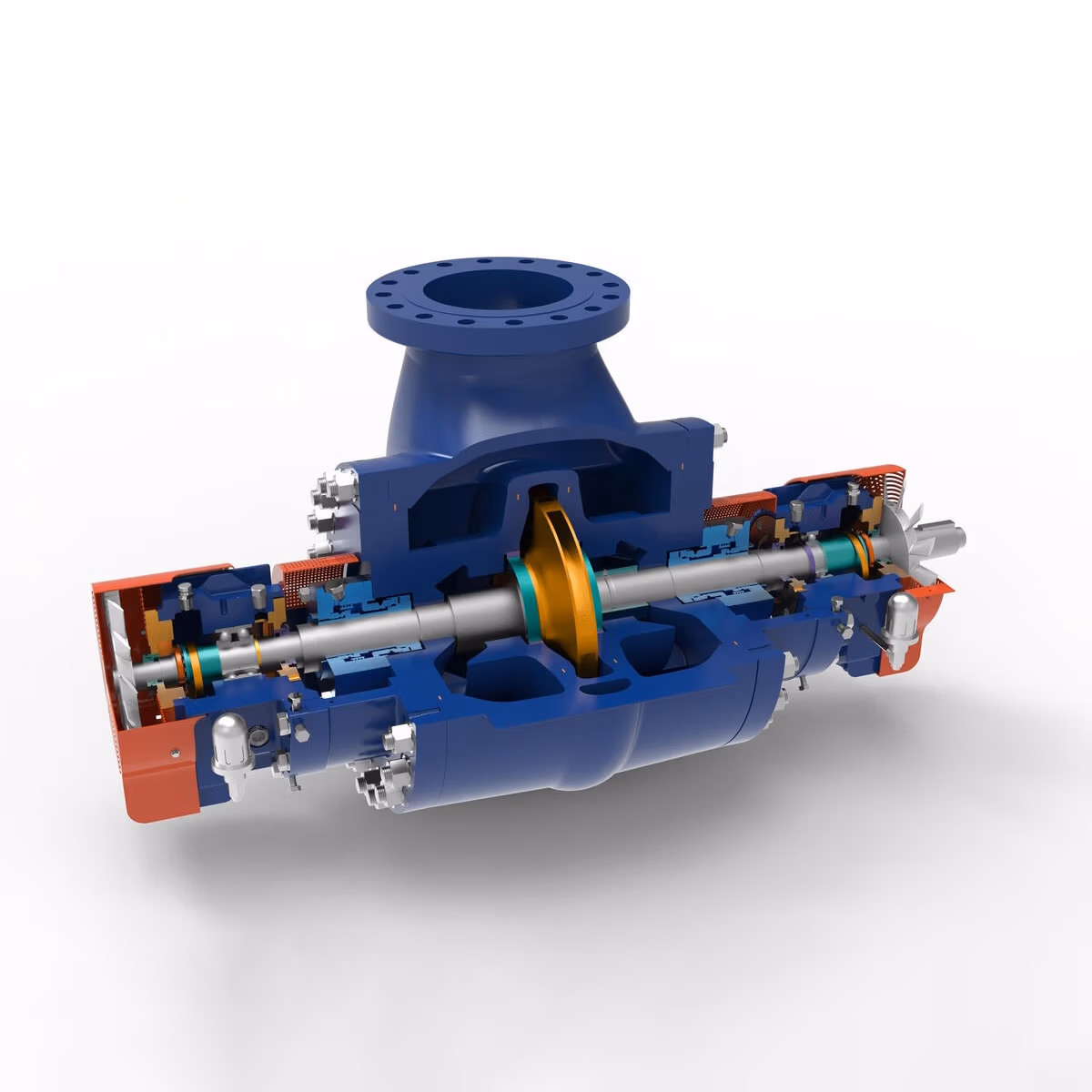

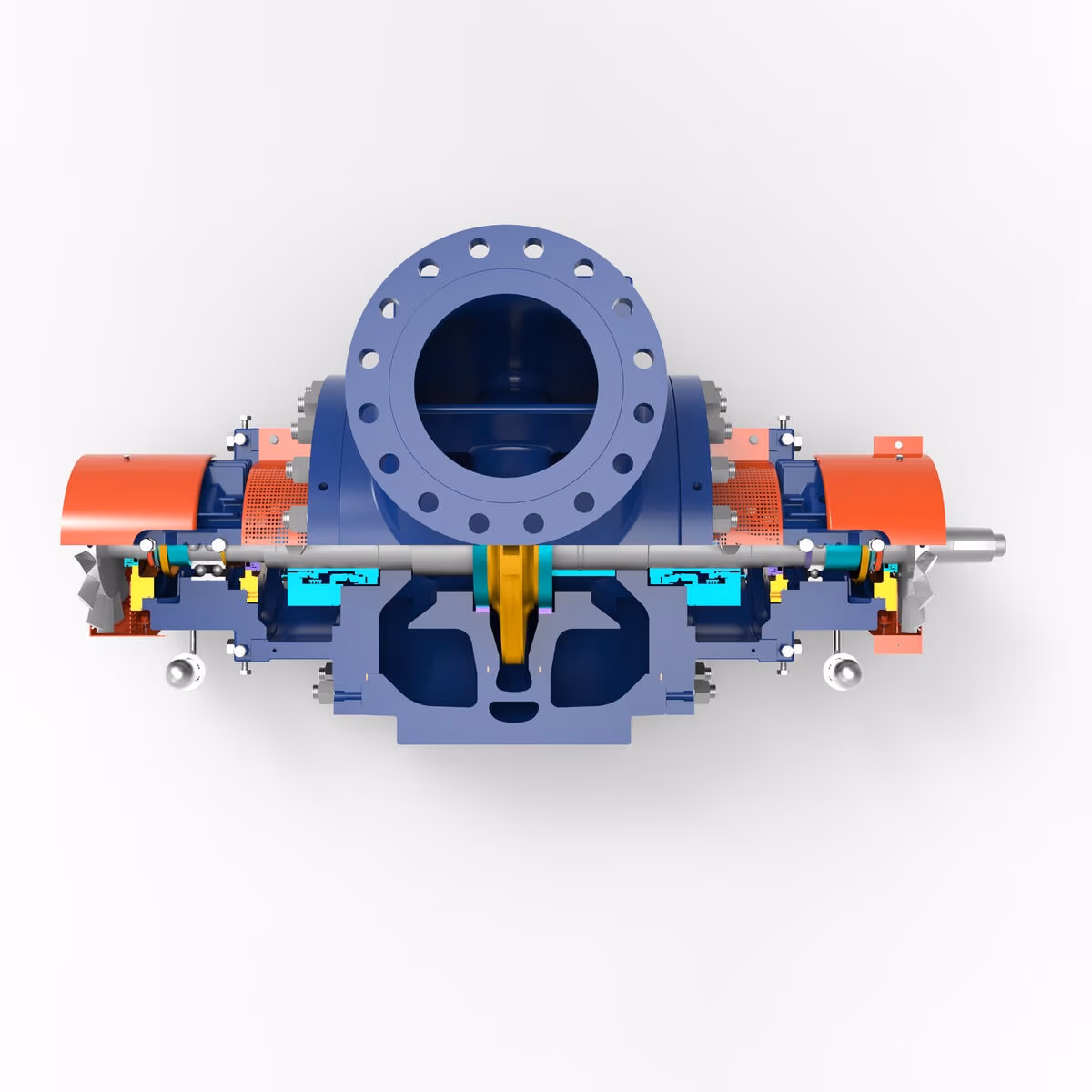

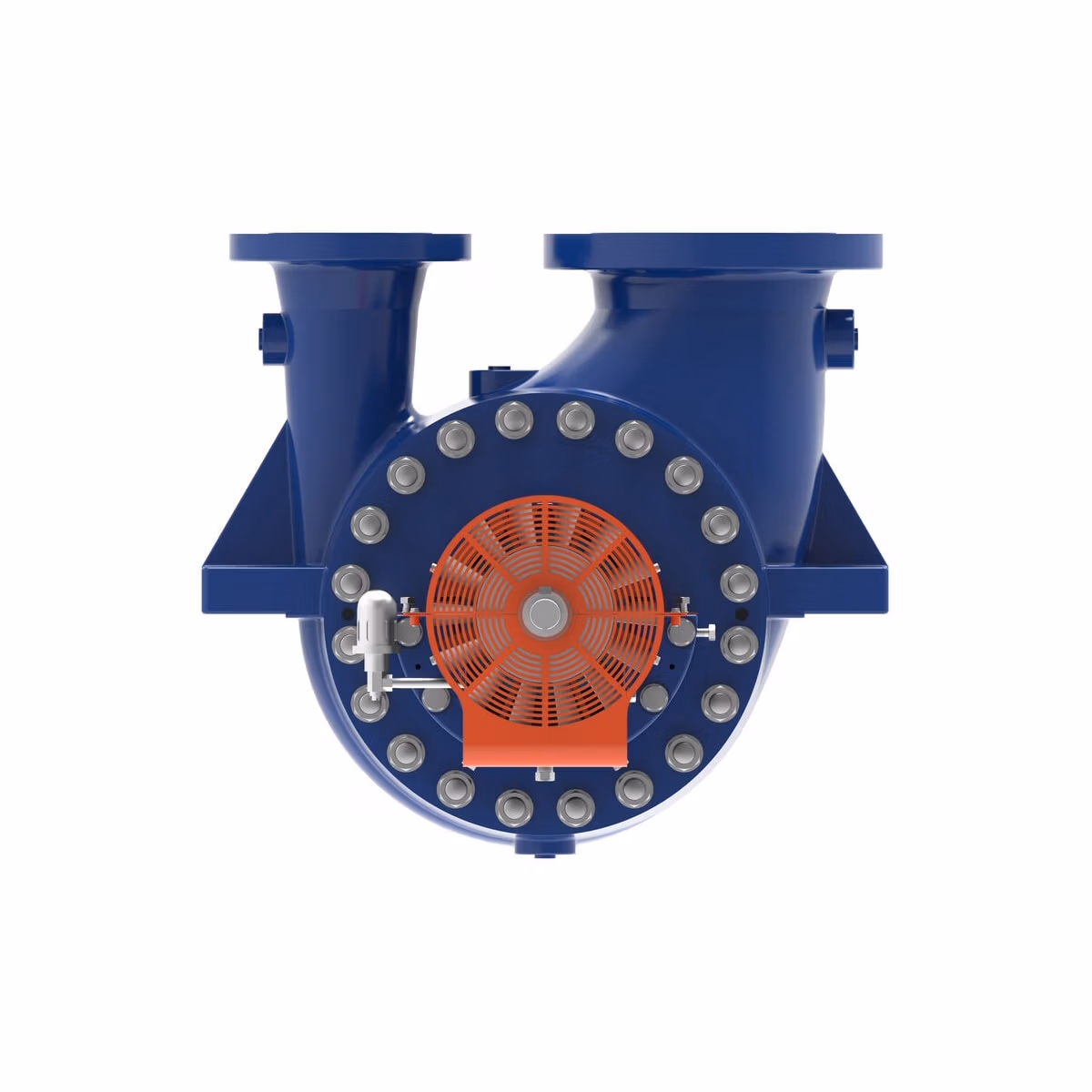

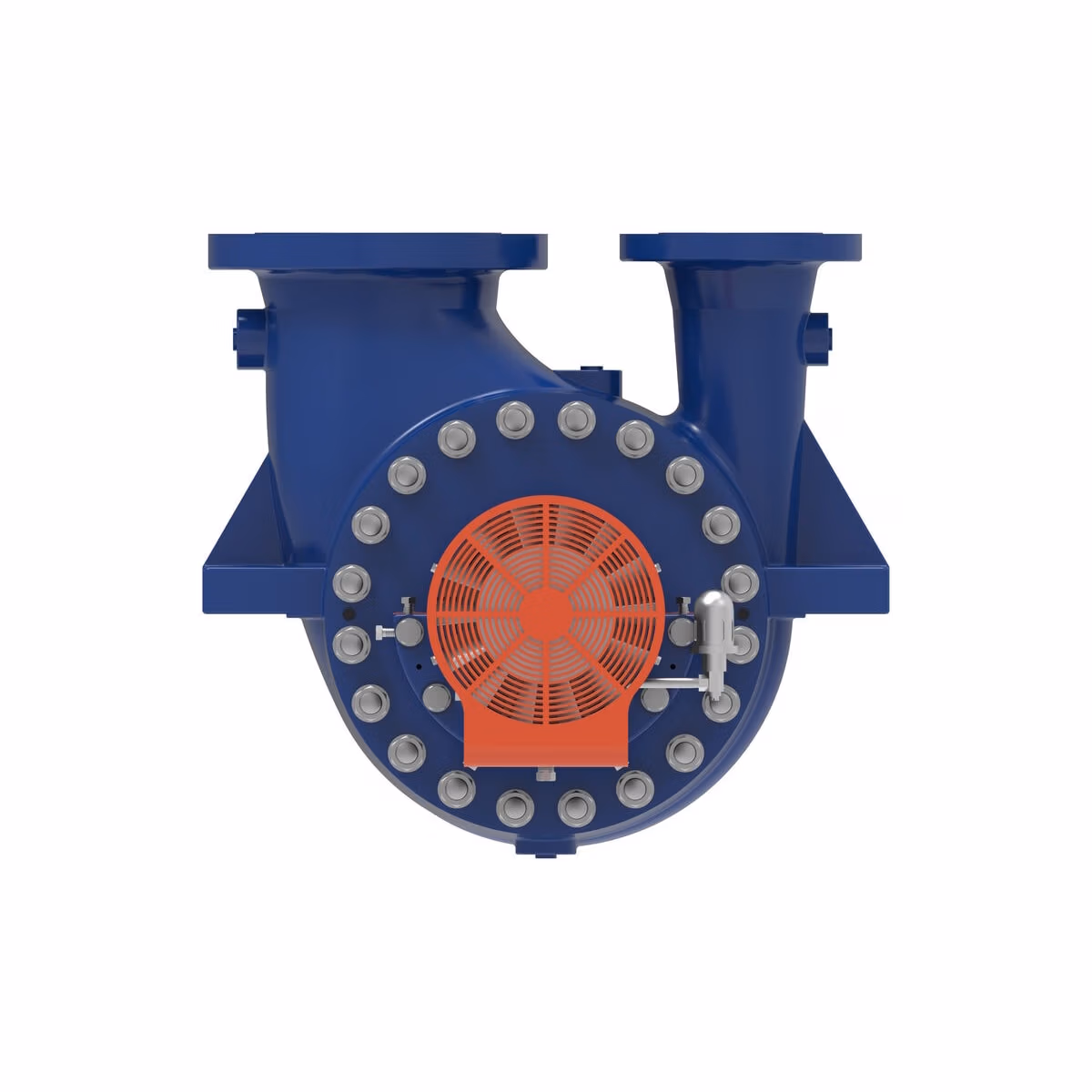

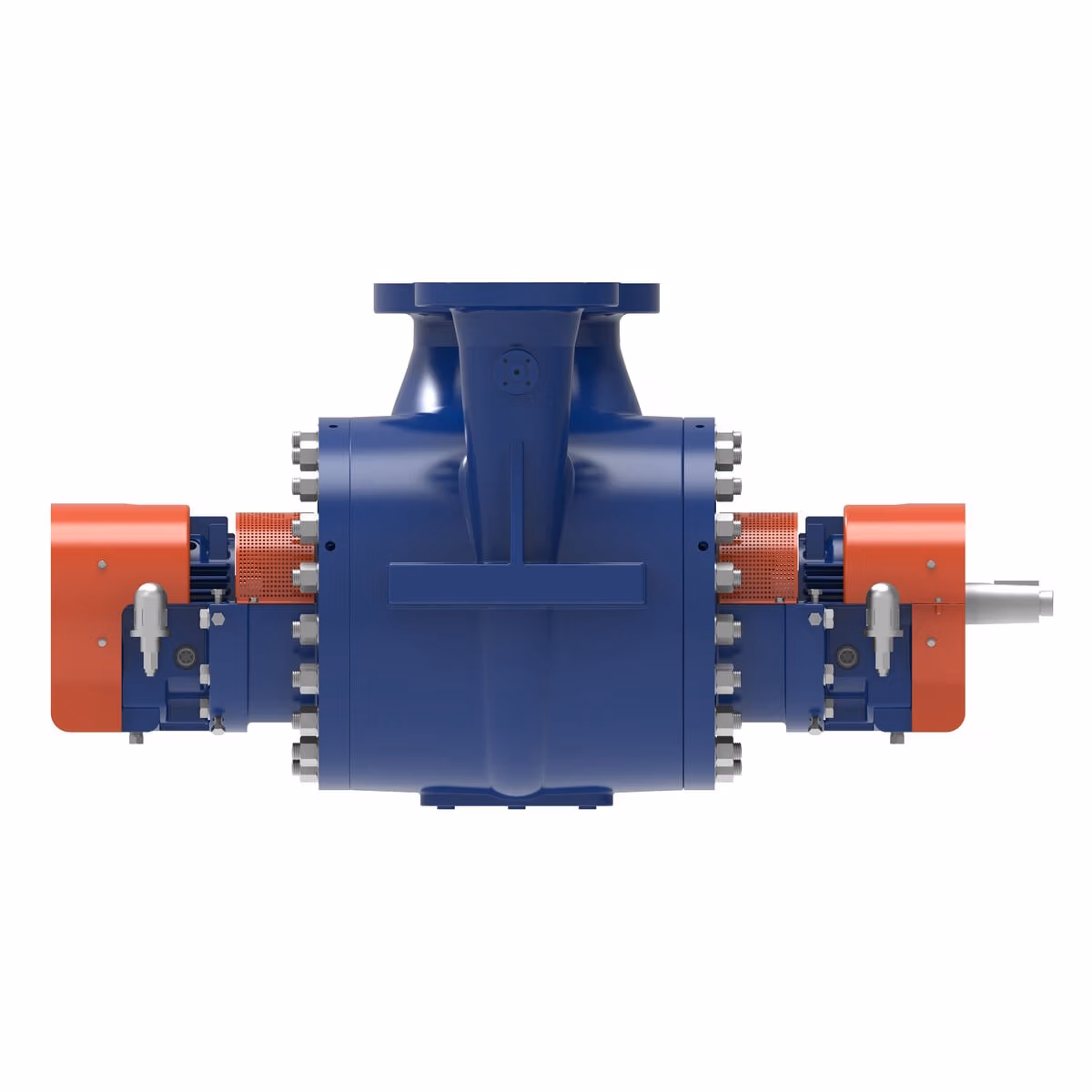

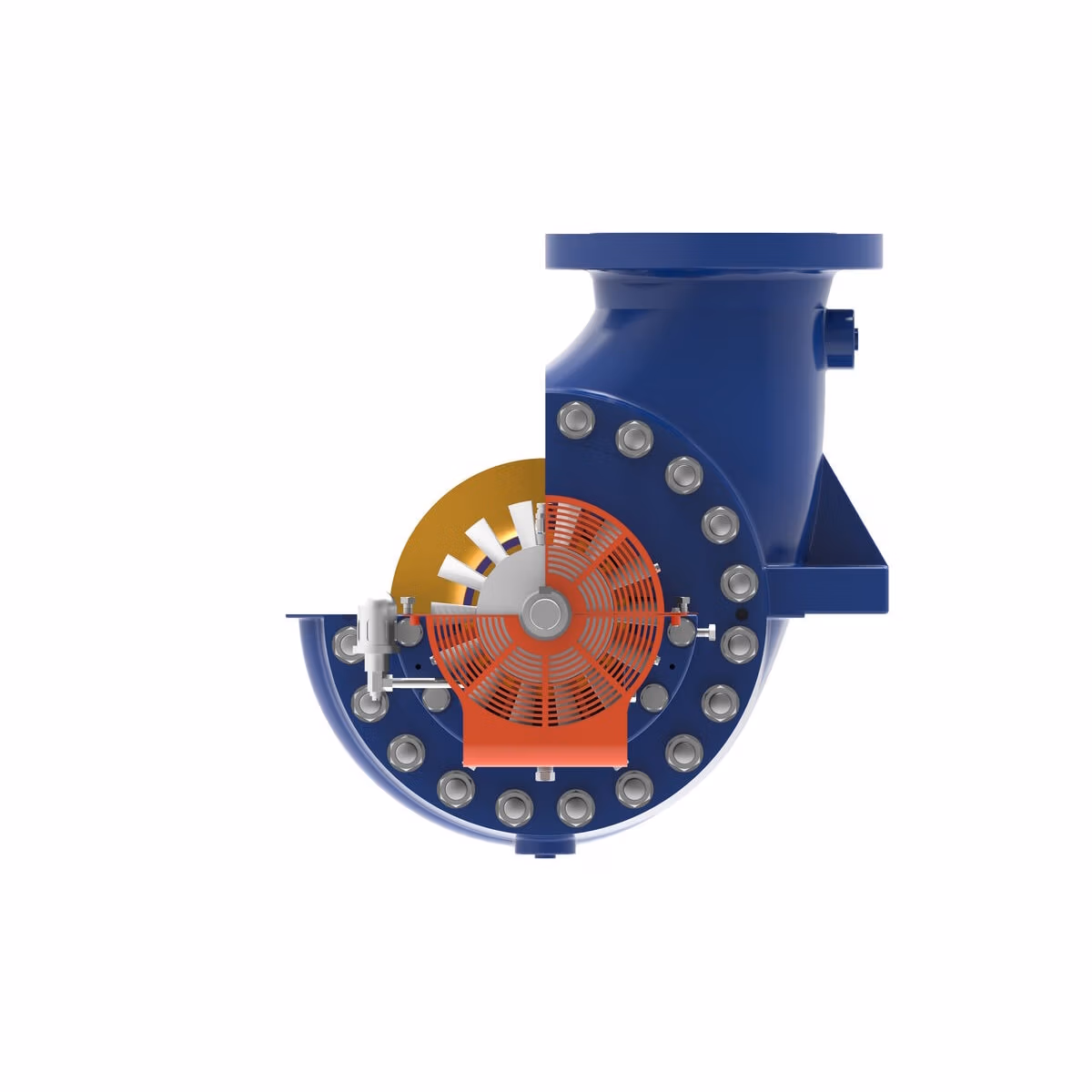

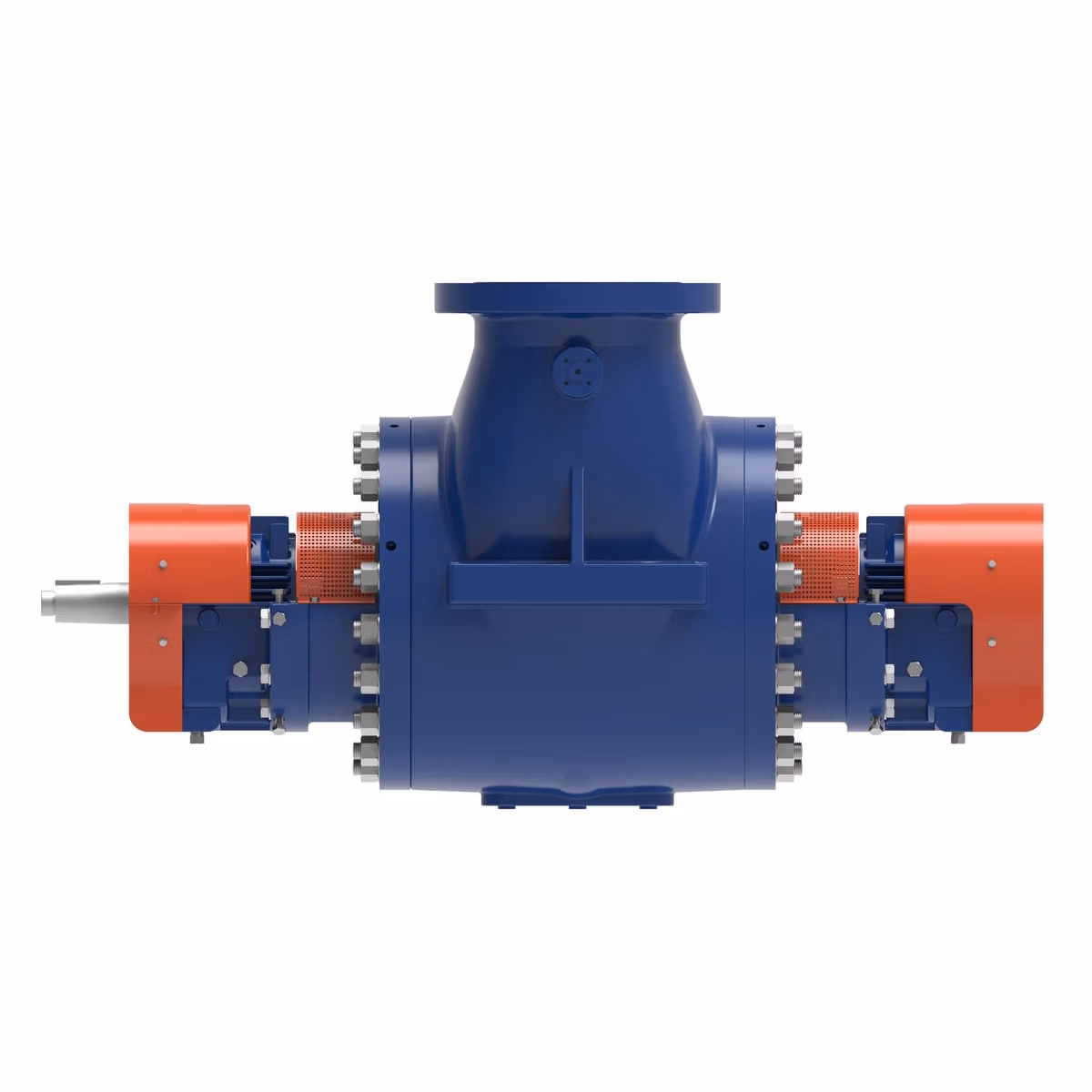

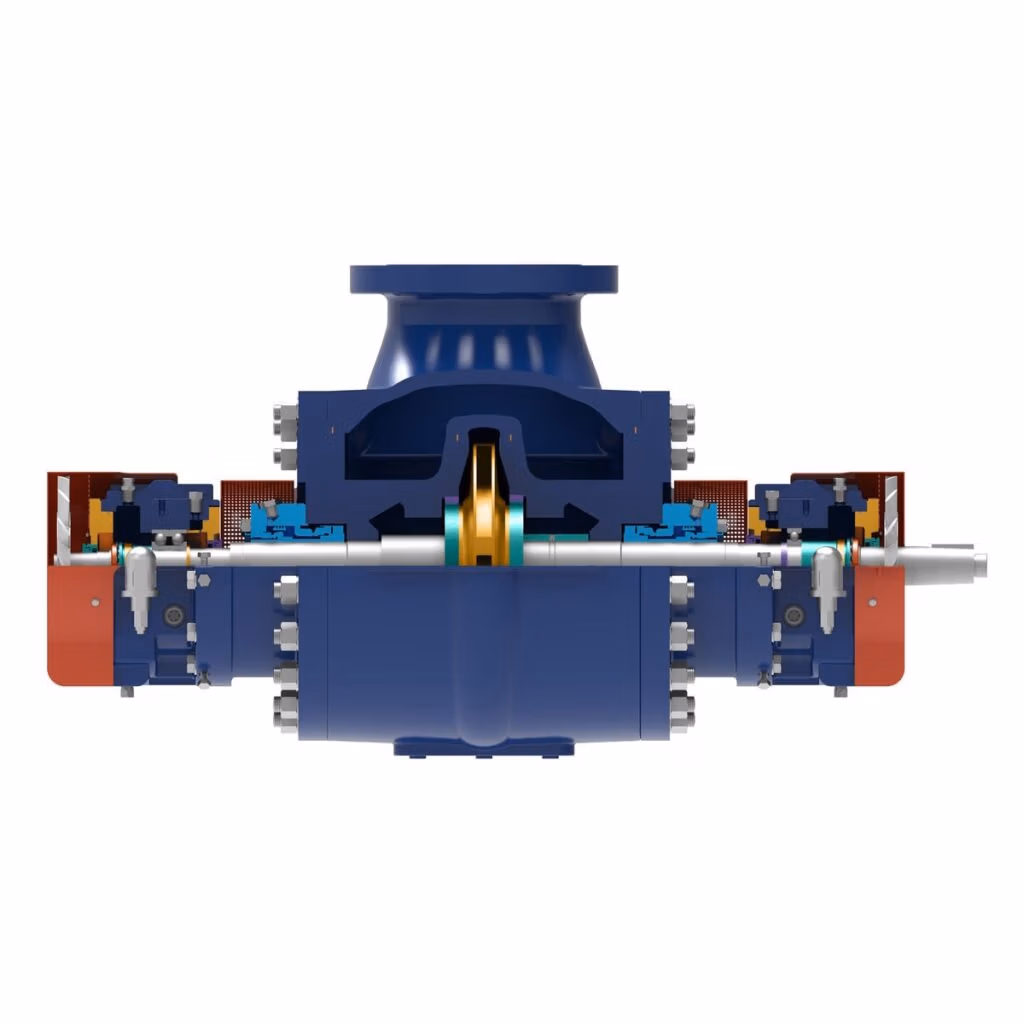

The DSA Gabbioneta Pumps® are horizontal, between bearings, with radial split casing and a double suction impeller.
A wide range of sizes, various arrangements of suction and discharge nozzles, and three bearings arrangements are available.
Key Features
- Capacity up to 12,000 m3/h (52,800 gpm)
- Head up to 380 m (1,200 ft.)
- Operating temperature from -30ºC (-20ºF) to 455ºC (851ºF)
- Standard design pressure 40 bar (580 psig), special executions up to 100 bar (1,400 psig)
- Rotational speed up to 3,600 RPM
Design Standard
- API 610 latest edition
Materials
- All API 610 class materials
- Special materials upon request
